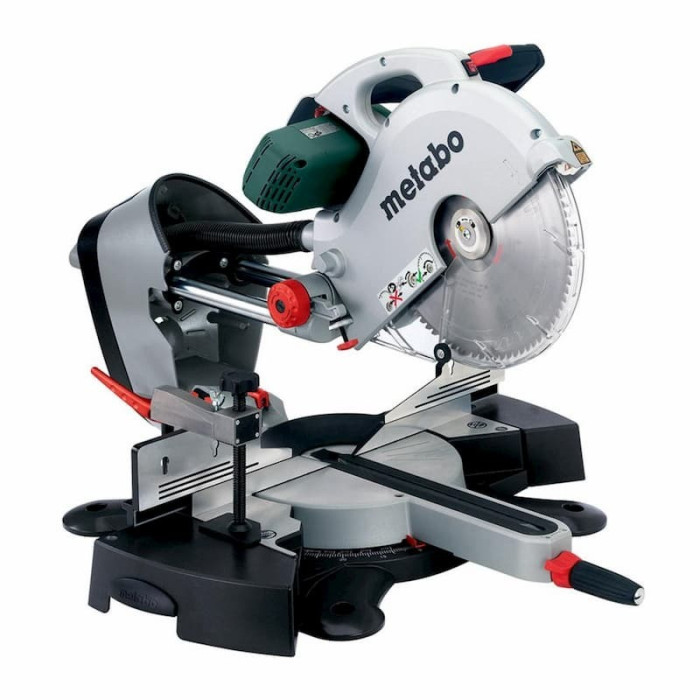

KGS 315 Plus2200w 315mm Slidi

Enormous cutting performance due to extremely powerful universal motor and large saw blade.
SKU: 0103150000-MET
Sign up for price alert

Model: 0103150000
Availability: Yes

$1,098.00
Calculate Shipping

Description

Details

Features:

  • Enormous cutting performance due to extremely powerful universal motor and large saw blade
  • Superb dust extraction capability thanks to a dual extraction port design aligned closely to the work piece.
  • Sliding function for wide work pieces.
  • Maximum flexibility when sawing thanks to rotating saw table and inclining saw head on both sides
  • Vario-Constamatic (VC)-Full wave electronics for working at customised speeds to suit the application materials, and speeds that remain almost constant even under load
  • Metabo Quick for changing saw blades without tools
  • Speed control for extended range of application, e.g. for cutting of aluminium profiles and plastics
  • All scales and operating elements are visible from the working position and can be operated intuitively
  • Fast and precise setting of common angles using stop points
  • Soft start for long service life of motor and drive
  • Depth stop for easy creation of grooves
  • Easy transport thanks to ergonomically-designed handles and saw head lock
  • Material clamp for secure fixing of the work piece from the top or front
  • Integrated, pull-out table width extensions made from die-cast aluminium
  • High sliding rear fence profiles for safe sawing

Specifications:

Characteristics

  • Dimensions: 950 x 765 x 660 mm / 3.2 x 2.5 x 2.2 ft
  • Maximum cutting width 90°/45°: 320 / 223 mm // 12 9/16 / 8 3/4 "
  • Maximum cutting depth at 90°/45°: 120 / 76 mm // 4 11/16 / 3 "
  • Straight cut 90°/90°: 320 x 120 mm / 12 9/16 x 4 11/16 "
  • Double mitre 45°/45°: 223 x 76 mm / 8 25/32 x 3 "
  • Turntable setting left/right: 47 / 60 °
  • Saw blade tilt left/right: 46 / 46 °
  • Saw Blade: 315 x 30 mm / 12 3/8 x 1.181 "
  • Rated Input Power: 2200 W
  • Rated input power S6 20%: 2200 W
  • No-Load Speed: 3100 - 4100 /min
  • Revolutions at Rated Load: 4100 /min
  • Cutting Speed: 51 - 68 m/s // 167 - 223 ft/s
  • Weight: 26 kg / 57.3 lbs
  • Cable Length: 2.1 m / 7 ft

Includes:

  • Carbide saw blade (84 teeth)
  • 2 Table length extensions
  • Material clamp
  • Connection piece 630316000
