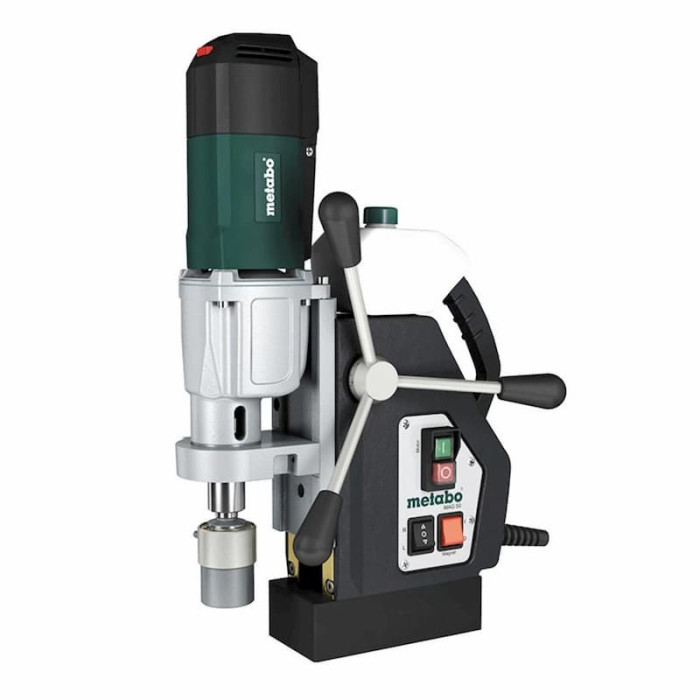

MAG 50 1000w 19mm weldon/ MK3

    Vario-Tacho-Constamatic (VTC)-Full Wave Electronics for work with materials requiring customised speeds, which remain constant under load.
    SKU: 600636500-MET
    Sign up for price alert

    Model: 600636500
    Availability: In stock

    $2,800.00
    Calculate Shipping

    Description

    Details

    Features:

    • Large stroke, therefore suitable for use of core drills, spiral drills and countersinks
    • Magnetic base with high holding power permits working on vertical surfaces and overhead
    • Robust Metabo marathon motor with internal wiring for long service life
    • Vario-Tacho-Constamatic (VTC)-Full Wave Electronics for work with materials requiring customised speeds, which remain constant under load
    • Overload protection: protects the motor from overheating
    • Clockwise/anti-clockwise rotation with thread cutter
    • Durable two-speed gearbox with oil bath lubrication for ideal speeds
    • Integrated coolant container for easy to dose internal cooling of the core drill
    • Bright LED light for easy alignment in poor light conditions
    • Swarf protection can be fixed without tools and protects the user from metal shavings and tool contact
    • Protective circuit starts motor only if the magnet is activated
    • Restart protection: prevents unintentional start-up after power supply interruption
    • Lockable slide for comfortable tool change
    • Handle for easy carrying and lifting
    • Resistant mains cable (5 m) with rubber shroud

    Specifications:

    Characteristics

    • Rated Input Power: 1200 W
    • Output Power: 620 W
    • Max. drill-Ø with core drill: 50 mm / 2 "
    • Max. drill-Ø with spiral drill: 20 mm / 3/4 "
    • Maximum drilling depth: 50 mm / 2 "
    • Thread cutting: M 16
    • No-Load Speed: 100 - 250 / 200 - 450 /min
    • Revolutions at rated load: 250 / 450 /min
    • Bit Retainer: Morse taper MK 2 / Weldon shaft 19 mm (3/4")
    • Weight: 12.7 kg / 28 lbs
    • Cable Length: 5 m / 16 ft
    • Torque: 90 / 50 Nm // 797 / 443 in-lbs
    • Maximum stroke: 160 mm / 6 5/16 "
    • Max. magnetic holding force: 12250 N
    • Dimensions of the magnet base: 90 x 190 mm / 3 9/16 x 7 1/2 "
    • Carriage lowest position: 457 mm / 18 "
    • Carriage top-most position: 610 mm / 24 "

    Vibration

    • Drilling in metal: 2.5 m/s²
    • Uncertainty of measurement K: 1.5 m/s²

    Noise emission

    • Sound Pressure Level: 79 dB(A)
    • Sound power level (LwA): 92 dB(A)
    • Uncertainty of measurement K: 3 dB(A)

    Includes:

    • Industrial holder for Weldon shank 19 mm
    • Swarf protection guard
    • Transport case
    • Ejector pins 75 and 100 mm
    • MK 2 drift key
    • Safety strap
    • Hexagon socket wrench SW 5
