Air Compressor PT35 Twin Pump Electric 3HP 150L
$6,320.00
SKU
00093
Barcode
9328241000537

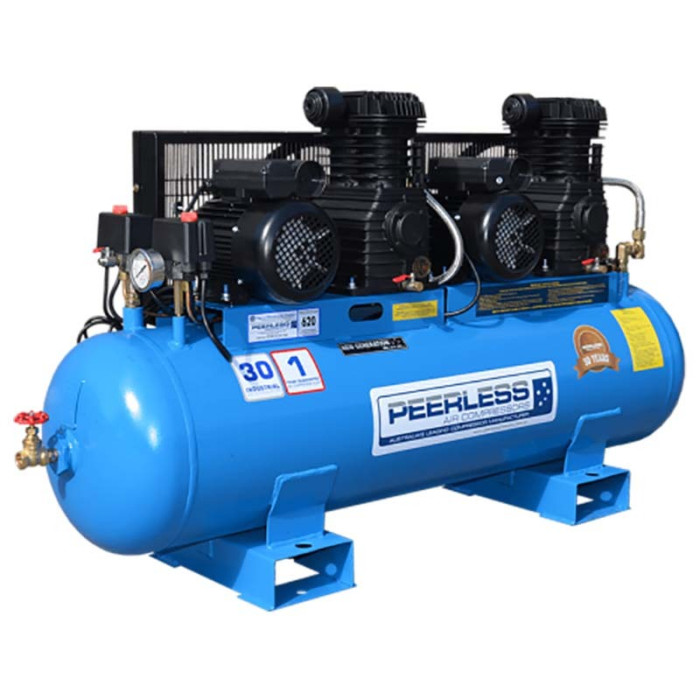

The PT35 is designed using two N75 pumps and 3.5 HP motors, coupled on a 150 litre air receiver. The pumps are designed to restart 5PSI apart and requires two 15amp power lines (draws 2 x 13 amps) back to your fuse box to operate this machine. It is very important to ensure that this machine is wired in correctly as failure to do so will cause motor failure. Giving you a massive 650 litres of free air per minute makes for an excellent single phase compressor.
Peerless 00093 Air Compressor PT35 Twin Pump Electric 3HP 150L
Feature:
- Two N75 pumps and 3.5 HP motors, coupled on a 150 litre air receiver.
- Pumps designed to restart 5PSI apart and requires two 15amp power lines (draws 2 x 13 amps) back to your fuse box to operate this machine.
- 650 litres of free air per minute makes for an excellent single phase compressor.
- Genuine HP motor rating - Not peak HP
- Dual pump & motor design allowing for more airflow using single phase power
- Certified & registered Pressure Vessel to AS1210
- Smart Start Fliters - USA made to reduce start up AMPs by up to 40%
- Cast iron Peerless pump - 5 year warranty
- Fully copper wound motor
- A480 Stainless steel inlet & exhaust valves
- Compressed air to AS4637-2006 standard (Free Air Delivery)
- Pallet feet for ease of moving and mounting
Specifications:
- Air Delivery - 650 LPM @ 100PSI
- Cylinders - 2
- Max PSI - 145
- Motor - Electric 2 x 3.5 HP
- Pump - Peerless N75 Single Stage
- Pump RPM - 963
- Power Supply - 15 AMP
- Amps Draw - 2 x 13
- Tank Size - 150 L
- Dimensions (L x W x H) - 1500 x 400 x 900mm
- Weight - 184kg
- Portable / Stationary - Stationary
- Regulator Included? - N/A
| Model Number | 00093 |
|---|---|
| gtin | 9328241000537 |
| Brand | Peerless |
| FAD - CFM | 17 |
| Motor HP | 3 |
| Motor Type | Electric |
