250kg (0.25t) 3S Industrial Manual Chain Blocks (1.5m Standard Lift)
$159.01
SKU
503025
The Beaver 3S industrial chain block has improved reinforced side covers, made from heavy duty steel to ensure full protection of the vital gears, shafts, and bearings. The load chain is made of high resistance Grade 80 alloy steel that has a black finish, is heat treated, and is calibrated and marked according to ISO 3077 and ISO 1834. Beaver 'ID' plates and rivets are supplied in stainless steel (a non-conductive material) in order to avoid dangerous sparking, making them ideal for underground mining.

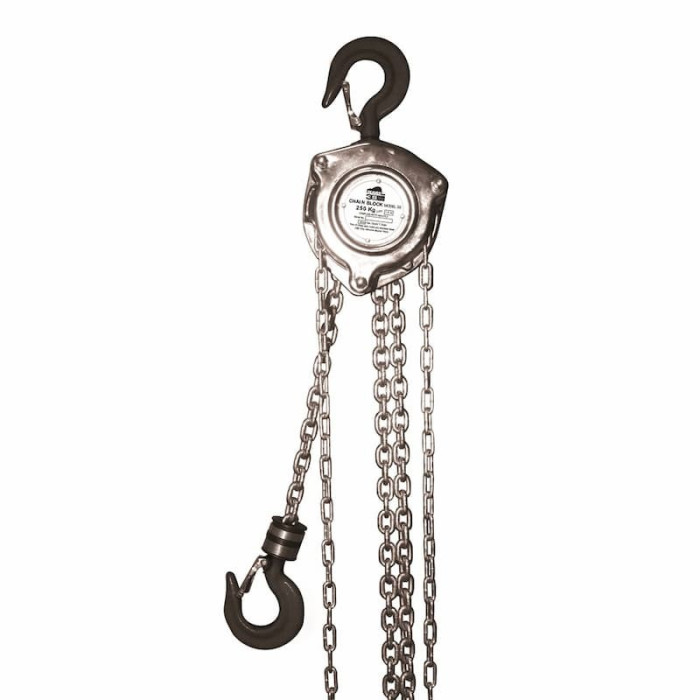

Beaver 503025 250kg (0.25t) 3S Industrial Manual Chain Blocks (1.5m Standard Lift)
Beaver chain blocks are designed for use on monorails, jibs fixed installations and for maintenance use. They are to be used for vertical lifts only. If they are side loaded or used horizontally, jamming of the loader chain and damage to the blocks may occur.
Features:
- All steel construction- impact resistant covers, the provide durability and protection.
- Double pawl and double guide rollers for enhance performance and reliability.
- Unique curling design- This feature enables the hand chain to successfully feed directly into the wheel sprocket from many directions and angles.
- Grade 80 load chain – black oxide coating for durability.
- Forged alloy steel hooks.
- Sealed roller bearings.
Specifications:
- Rated Capacity: 0.25t
- Colour Code: Grey
- Standard Lift: 1.5m
- Effort on Leaver to Lift Full Load: 300kg
- No. Load Chain Falls: 1
- Load Chain Diameter: 4mm x 12mm
These chain blocks are colour coded to match international lifting standards for fast and accurate identification of WLL. Every chain block is also operationally tested to its rated capacity and is supplied with a Beaver test certificate, relating to its stamped identification side plate.
- Size:
- A - 110mm
- B - 100mm
- C - 18mm
- H - 230mm
- Net Weight: 3.5kg
| Model Number | 503025 |
|---|---|
| Brand | Beaver |
