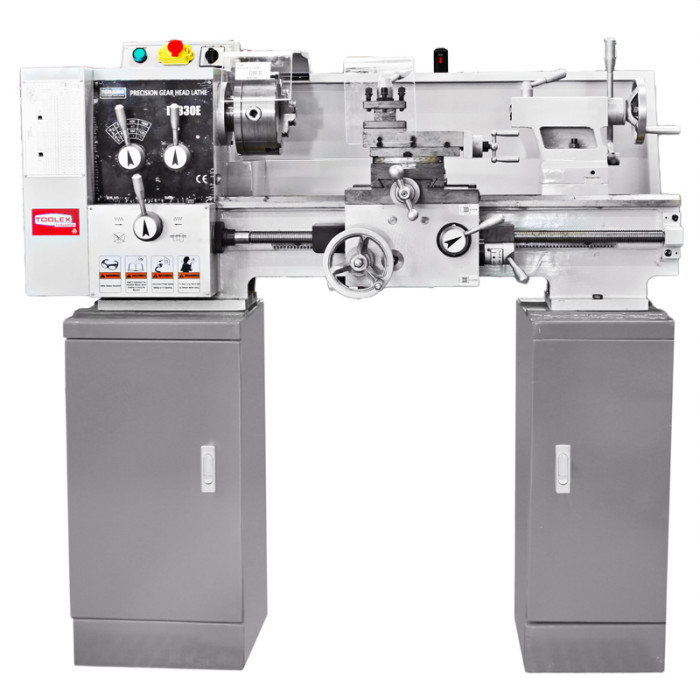

Metal Lathe Multipurpose 600mm With Heavy Duty Cabinet Stand 320m Swing

Product Features:

• Geared headstock for quick change of spindle speeds
• 38mm spindle bore
• Hardened and ground bed
• Adjustable taper roller spindle bearings
• Metric & imperial thread cutting
• Powered longitudinal and cross feed
• Head stock oil sight glass
• Thread chasing dial
• Quick action tailstock locking lever
• Forward/reverse spindle switch

Product Specifciations:

• Model: 511924
• Swing over bed: 330mm
• Swing over carriage: 160mm
• Distance between centers: 600mm
• Bed width: 160mm
• Spindle bore: 38mm
• Spindle taper: 5MT
• Spindle speed: 60 - 1800rpm
• Tool post travel: 100mm
• Cross travel: 160mm
• Longitudinal travel: 680mm
• Longitudinal feed: 0.1 - 1.5mm/r
• Cross feed: 0.045 - 0.6mm/r
• Metric threads: 15/0.5-4mm
• Inch threads: 23/9-40tpi
• Travel of tail stock sleeve: 85mm
• Taper of tail stock sleeve: 3MT
• Motor power: 1100W
• Net Weight: 245 KG
• Gross Weight: 275 KG

Product Inclusions:

• 160mm 3 jaw chuck with reverse jaws
• Chuck key
• Dead centre
• Change Gears
• Safety chuck guard
• Rear splash guard
• Spanners
• Head wrench
