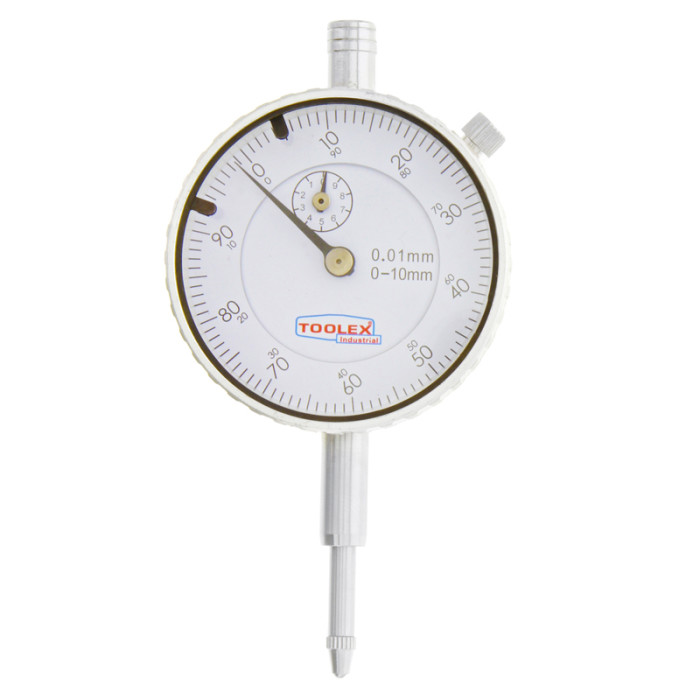

Dial Indicator Metric 0-10mm with Lugs
$39.00
SKU
530193
Barcode
9312605301934
Metric Dial Gauge Indicator offers users more stability and longer life, thanks to advances to the inner workings of the rack and pinion gear system. Shock resistance is increased with a more robust gear train, while contamination resistance has been dramatically increased over other indicators of this type with a tighter seal around the bezel and frame, and the elimination of a lifting lever screw. A long slot in the lifting lever makes the contact point for the lift a straight line, creating a smoother lifting action and leading to longer operational life. A flat crystal allows easier reading, and jeweled bearings inside provide longer, more accurate life.
Toolex 530193 Dial Indicator Metric 0-10mm with Lugs
Features:
- Rotating dial and zero reset
- Complete with mounting lugs to suit attachment to magnetic base
- Carbide Steel measuring head; Stainless steel probe
- Measuring range: 0-5/ 0-10mm; Accurancy: 0.01mm
- Manufactured according to ASME/ANSI standards
- Polished chrome control arm, infinitely adjustable for exact alignment
- Precision measuring and inspection instrument for manufacturing, maintenance
Specifications:
- Body Material - All Metal
- Size - 104 x 55 x 28mm
- Measuring Range - 0-10mm
- Resolution - 0.01mm
- Stem Diameter - 8mm
- Dial Diameter - 2.13"
- Probe Material - Stainless Steel
- Manufacture Standards - ASME/ANSI Standards
| Model Number | 530193 |
|---|---|
| gtin | 9312605301934 |
| Brand | Toolex |
