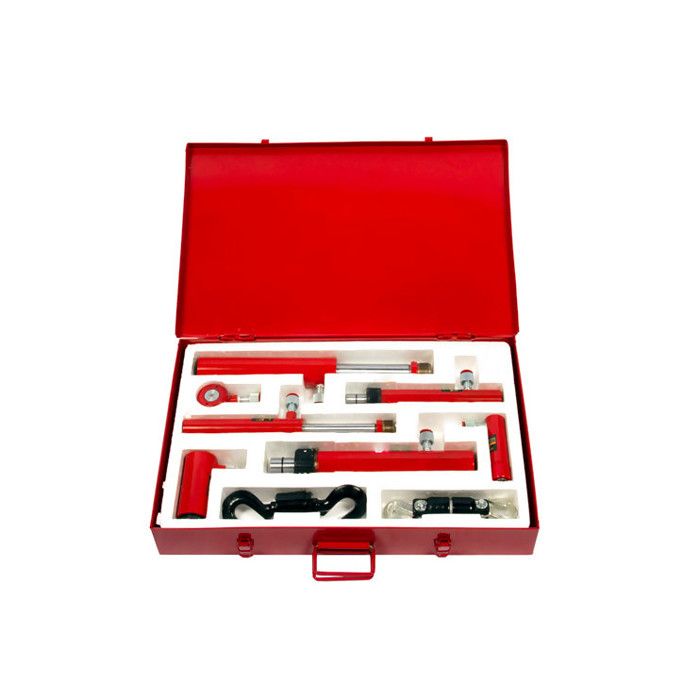

Auto Body 10T Frame Kit
$451.00
SKU
531201
Barcode
9312605312015
Auto-Body Frame Kit
PRODUCT FEATURES
- Auto-Body Frame Kit
- For use with auto body repair kits or with Enerpac Type Hydraulic power units
- Mounted in Polystyrene moulds in a strong metal box
PRODUCT SPECIFICATIONS
- Kit Includes: Mini Ram:
- Capacity: 4T
- Stroke: 18mm
- Min Height: 42mm
- Max Height: 58mm
- Weight: 0.75Kg
- Without return spring Mini Ram:
- Capacity: 10T
- Stroke: 57mm
- Min Height: 132mm
- Max Height: 189mm
- Weight: 2Kg
- With return spring Mini Ram:
- Capacity: 2T
- Stroke: 70mm
- Min Height: 139mm
- Max Height: 240mm
- Weight: 0.82Kg
- Without return spring Power Ram:
- Capacity: 4T
- Stroke: 125mm
- Min Height: 275mm
- Max Height: 405mm
- Weight: 1.76Kg
- With return spring Power Ram:
- Capacity: 10T
- Stroke: 150mm
- Min Height: 350mm
- Max Height: 500mm
- Weight: 5.2Kg
- With return spring Pull Back Ram:
- Capacity: 2T
- Stroke: 127mm
- Min Height: 422mm
- Max Height: 550mm
- Weight: 2.6Kg
- With return spring Pull Back Ram:
- Capacity: 5T
- Stroke: 130mm
- Min Height: 520mm
- Max Height: 650mm
- Weight: 5.15Kg
- With return spring
- Mounted in Polystyrene moulds in a strong metal box 630 x 400 x 95mm
| Model Number | 531201 |
|---|---|
| gtin | 9312605312015 |
| Brand | Toolex |
