1000kg Permanent Magnet Lifters

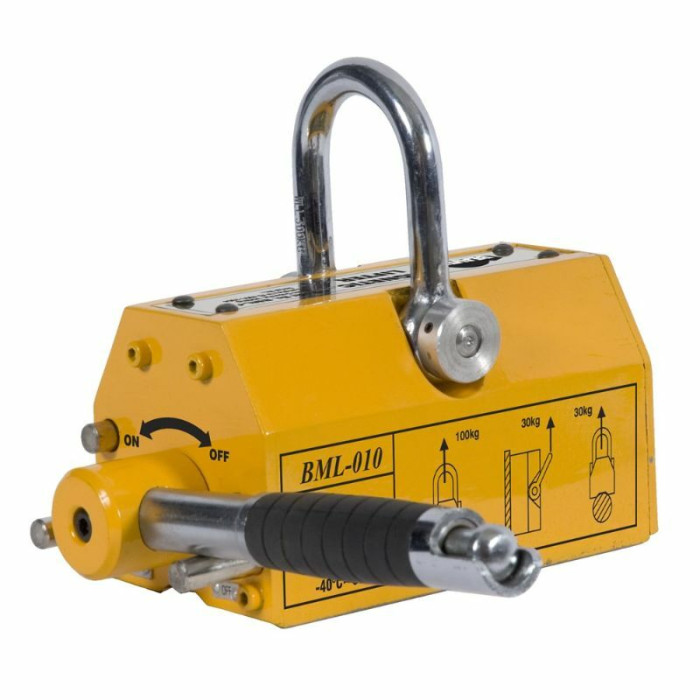

The Beaver permanent magnetic lifter is a product for lifting and handling steel plate, pipes, beams, and cylindrical work pieces of ferromagnetic materials. These lifters contain a NdFeB permanent magnet, which can generate high holding-power in a magnetic circuit. With the use of a magnetic lifter, the need for slings, clamps, and special lifting frames can be eliminated.
Beaver 262100 1000kg Permanent Magnet Lifters
MH2620
Compact in design and construction, convenient in operation with a strong holding force, are safe and reliable. These magnetic lifters are widely used for lifting and hoisting in factories, warehouses, on wharves, and at transport facilities.
Specifications:
- Model Number: BML-100
- WLL:
- Flat Plate - 1000kg
- Cylinder - 300kg
- Weight: 50kg
- Max handle Turning Force: <16
The magnetic lifter comes complete with a rated shackle that is stamped with the working load limit, test number, serial number, month and year of manufacture, and the European standard compliance mark (CE).
- Size:
- A - 888mm
- B - 164mm
- C - 172mm
- D - 100mm
- E - 68mm
- K - 264mm
- L - 137mm
- M - 237mm
- N - 110mm
- P - 95mm
| Model Number | 262100 |
|---|---|
| Brand | Beaver |
