270kg Lift 545kg Pull Brake Hand Winches
$269.01
SKU
BHW1200
The Beaver brake hand winches are available in 3 models, dividied by pulling and hoisting capacity.

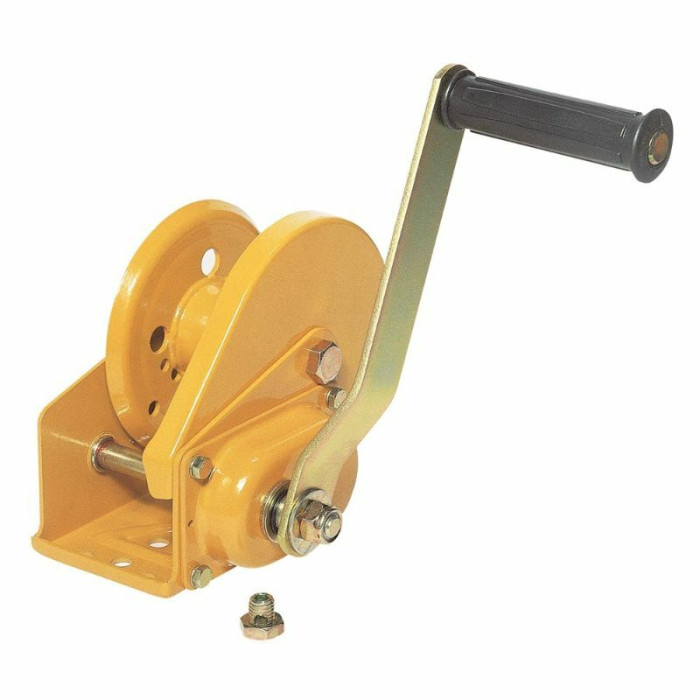

Beaver BHW1200 270kg Lift 545kg Pull Brake Hand Winches
MHBHW1
Specifications:
- Model No. Bare: BHW1200
- Model No. Wire Rope: BHW1200R
- Rated Capacity - Pulling: 545kg/5.33kN
- Rated Capacity - Hoisting: 270kg
- Type of Brake: Single Paw
- Max Hand Force Req.: 15kg
- Gear Ratio: 4:1:1
- Hub Diameter: 50mm
- Handle Length: 210mm
- Unit Weight - Bare: 3.8kg
- Wire Rope Diameter: 5mm
- Wire Rope Construction: 6x19 FC RHL
- Grade of Wire Rope: 1770
- Wire Rope Finish: Hot Dipped Galvanised
- Wire Rope Storage Capacity: 24m
- Std Wire Rope Length: 10mm
| Model Number | BHW1200 |
|---|---|
| Brand | Beaver |
