100kg Permanent Magnet Lifters
The Beaver permanent magnetic lifter is a product for lifting and handling steel plate, pipes, beams, and cylindrical work pieces of ferromagnetic materials. These lifters contain a NdFeB permanent magnet, which can generate high holding-power in a magnetic circuit. With the use of a magnetic lifter, the need for slings, clamps, and special lifting frames can be eliminated.

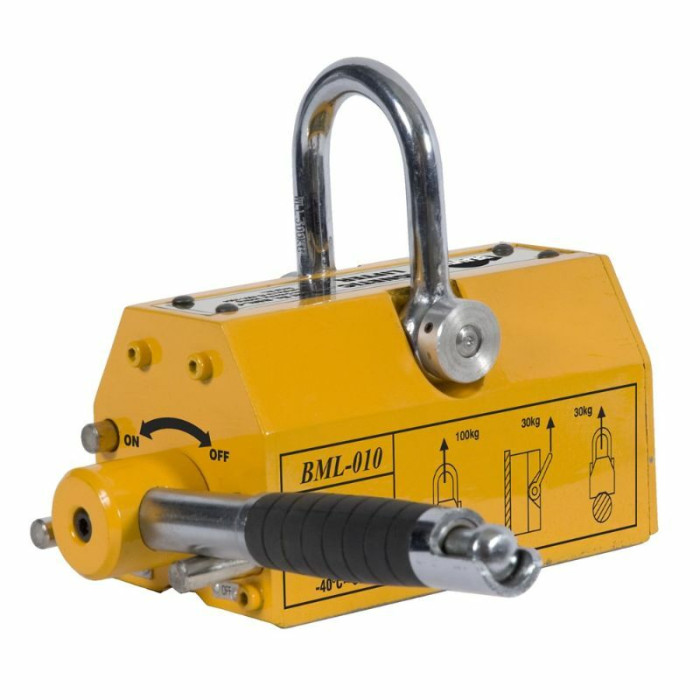

Beaver 262010 100kg Permanent Magnet Lifters
MH2620
Compact in design and construction, convenient in operation with a strong holding force, are safe and reliable. These magnetic lifters are widely used for lifting and hoisting in factories, warehouses, on wharves, and at transport facilities.
Specifications:
- Model Number: BML-010
- WLL:
- Flat Plate - 100kg
- Cylinder - 30kg
- Weight: 3kg
- Max handle Turning Force: <4
The magnetic lifter comes complete with a rated shackle that is stamped with the working load limit, test number, serial number, month and year of manufacture, and the European standard compliance mark (CE).
- Size:
- A - 28mm
- B - 68mm
- C - 62mm
- D - 44mm
- E - 28mm
- K - 92mm
- L - 50mm
- M - 116mm
- N - 42mm
- P - 31mm
| Model Number | 262010 |
|---|---|
| Brand | Beaver |
