1500kg (1.5t) Grade 100 B-Alloy-V Weld-On Lifting And Lashing Rings
$39.00
SKU
BALPV015
Beaver B-Alloy Grade 100 weld-on lifting and lashing rings are manufactured using quality alloy steel, quenched and tempered, and offers a full working load limit at all angles. Just some of the many applications for this innovative product include mining, offshore exploration, road or rail transport, and maritime associated industries. Ring has a durable powder coated baked enamel finish, and is available in a function and compact design.

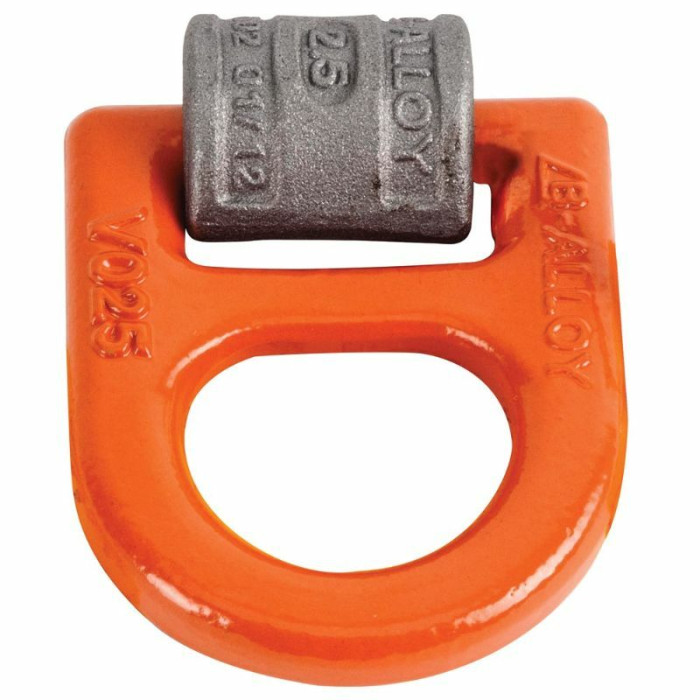

Beaver BALPV015 1500kg (1.5t) Grade 100 B-Alloy-V Weld-On Lifting And Lashing Rings
MHBALPV
Specifications:
Ring and welding block are both marked with B-Alloy-V, WLL, MM/YY of manufacture with individual test number for precise edentification traceability. Test Certificate is available with purchase.
- WLL: 1.5t
- Size:
- A - 38mm
- B - 79mm
- C - 66mm
- D - 14mm
- E - 13.5mm
- F - 32mm
- G - 25mm
- I - 31mm
- M - 2mm
- Approx Weight: 0.4kg
These components are easily welded into required position with the aid of height lugs on the weld block. Weld instructions are also included with each unit. Please note that welding should only be carried out according to EN 287 or AWS Standards by an authorised welder.
- Weld mm HV+aL: HV5+3?
- Weld Size: HV 5+a3
- Weld Length: 2 x 33mm
- Weld Volume: ca. 1.2cm³
| Model Number | BALPV015 |
|---|---|
| Brand | Beaver |
