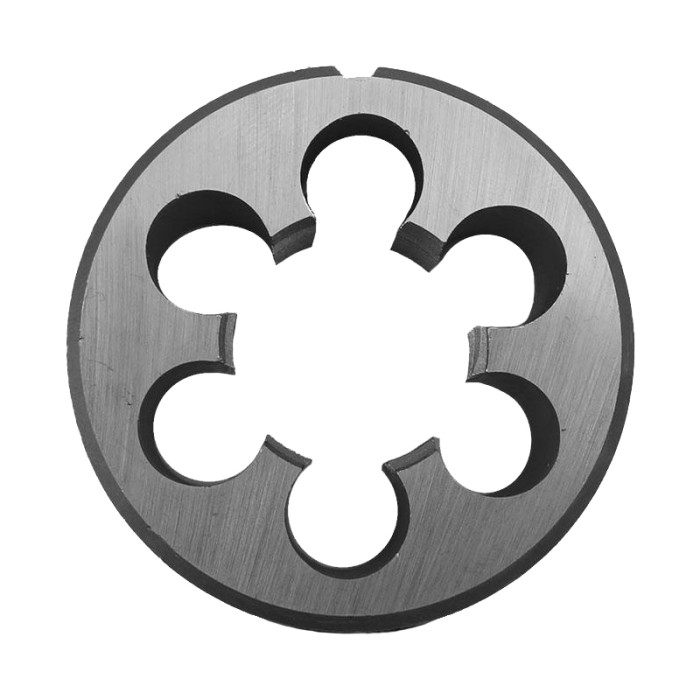

Button Die 7/8" UNC HSS 50mm OD

Toolex 514231 Button Die 7/8" UNC HSS 50mm OD

The thread profile of UNC is the same as for metric threads and is described in the JIS B0206 standard. The thread is described by its major diameter and the number of threads per inch of length (TPI).This thread series is commonly used in the mass production of bolts, screws and nuts. It is used for threading into lower tensile strength materials (bronze, brass, aluminium and plastics) to obtain the best resistance to stripping of the internal thread. It is also used on quick assembly or disassembly or if corrosion or slight damage is possible.

Features:

• Unified National Coarse
• UNC is described by its major diameter and the number of threads per inch of length (TPI)
• Used on quick assembly or disassembly or if corrosion or slight damage is possible.
• Manufactured from high speed steel material to International DIN standards.
• For general use and are available in all sizes individually.
• The HSS button & hexagon are suitable for material up to 1000N/mm2.
• Toolex Industrial HSS button dies & hexagonal die nuts are used to cut new threads, cleaning & re-storing existing threads on studs & bolts.
• Solid round die fits adjustable guide or plain die holders
• Cutting razor teeth produces a precise thread
• Made from M2 High Speed Steel offering the best combination of strength, heat & wear resistance
• Round type
• Ideal for steel, aluminium & cast iron

Specifications:

• Size - 7/8"
• Outside Diameter - 50mm
• Material - High Speed Steel (HSS)
• Thread Profile - UNC
• Type - Round
