YIRS-33 33kHz Non-Metallic Pipe Sonde
$1,166.00
SKU
YIRS-33
The C.Scope YIRS-33 33kHz Non-Metallic Pipe Sonde is a simple transmitter that is designed for use in conjunction with C.Scope Locators in generator/transmitter mode to trace the route of non-metallic pipes below ground. This helps avoid costly, dangerous gas/water pipe strikes when excavating as part of a utility, construction or rail project.

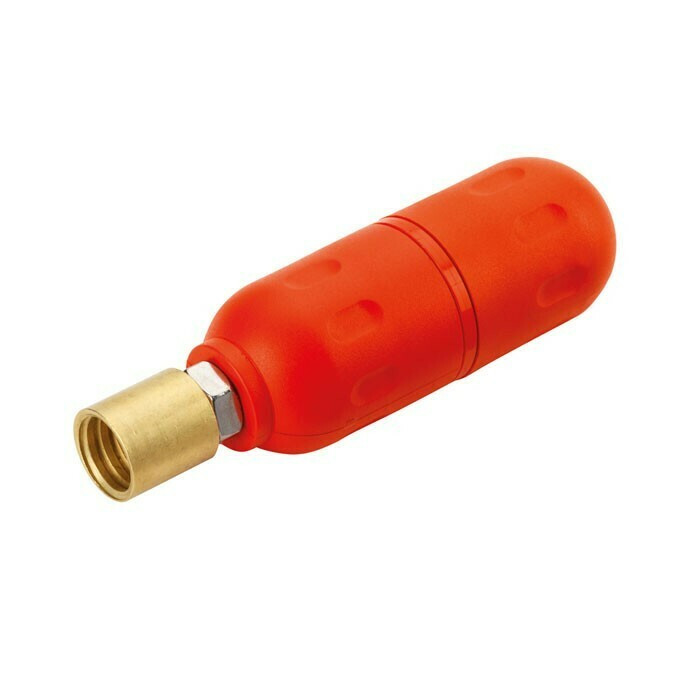

C.Scope YIRS-33 33kHz Non-Metallic Pipe Sonde
Features:
- Signal output frequency: 33kHz
- detection depth: 7m
- pipe diameter: 50mm
- Ideal for non-metallic pipe tracing
- IP68 waterproof rating
- Plastic, stainless steel and epoxy resin construction
- Fits onto drain rods with 7 T.P.I. thread
- Powered by 1 x AA battery
Specifications:
- Frequency: Transmits at 32,768Hz
- Construction: Rugged plastic casing, stainless steel stud. Epoxy resin filled
- Colour: Orange casing
- Detection Depth Range: Up to 7m (23 foot) dependent on type of C.SCOPE Locator and site conditions
- Dimensions: 39mm diameter x 121mm long
- End fitting: M10 threaded stud supplied with Rod Connector to fit standard drain rods with 7 T.P.I. thread
- Battery Type: 1 x AA, LR6 Alkaline
- Battery Life: Up to 15 hours
- IP Rating: 68
| Model Number | YIRS-33 |
|---|---|
| Brand | Topcon |
