Morse Taper Sleeves MT#2-4
$74.90
SKU
D1180024
Barcode
9311963024851
Drill Sleeves are used to adapt smaller morse taper shank tools to larger machine spindles. The concentricity and taper angles are precisely controlled which allows perfect locking and concentric movement to the tool held.

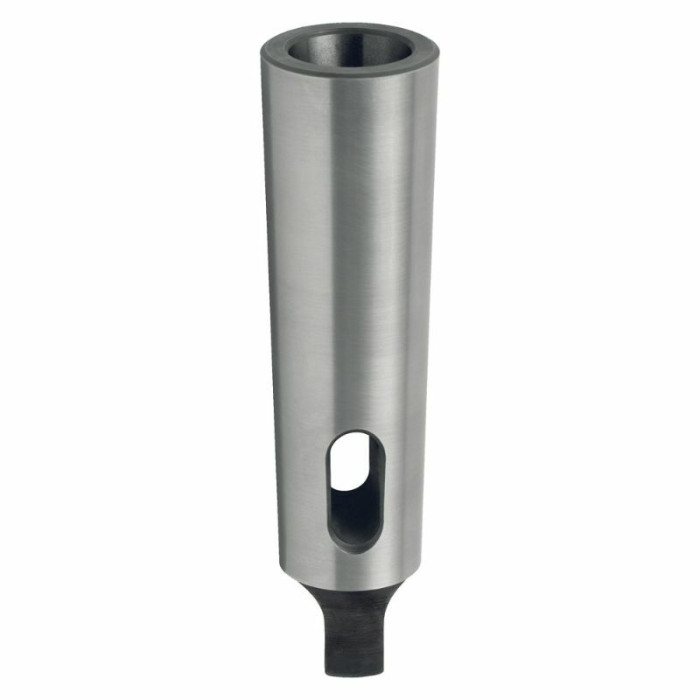

Sutton Tools D1180024 Morse Taper Sleeves MT#2-4
Features:
- Morse Taper Sleeve
- Precision ground internally and externally
Specifications:
- Size:
- l1 - 140mm
- d2 - 17.780mm
- MT# (internal) - MT#2
- MT# (external) - MT#4
- d1 - 31.267mm
- a1 - 6.5mm
- Designation - N
- Material - Alloy Steel
- Finish - Brt
- Shank Form - MTS
- x - als
- Cutting Edges - ul
| Model Number | D1180024 |
|---|---|
| gtin | 9311963024851 |
| Brand | Sutton |
