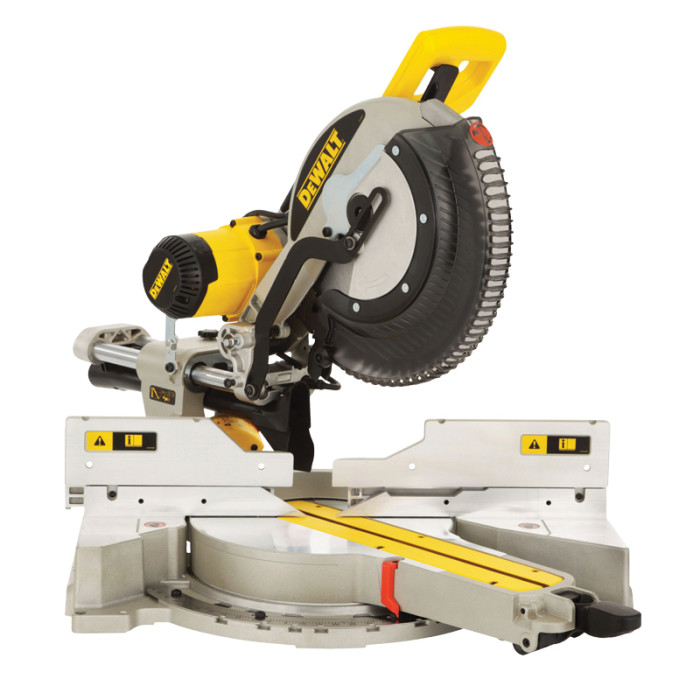

1675W 305mm (12") Dual Bevel Slide Compound Mitre Saw

DeWalt DWS780-XE 305mm (12") Dual Bevel Slide Compound Mitre Saw

Includes:

• 1 x High Quality 60 tooth blade
• 1 x Blade spanner
• 1 x Dust bag
• 1 x Material Clamp

Features:

• Outstanding cutting performance in both small profiles and large construction timbers up to 110 x 303 mm
• XPS Shadow line cut indicator provides fast accurate alignment of the blade while illuminating the work piece for increased productivity no adjustment required
• Heavy duty durability with the ability to fully adjust your machine to maintain accuracy over the life of the tool.
• New quick release bevel stop setting provides accurate and simple setting of bevel angles up to 49° left and right
• Easy to use mitre and bevel controls making the tool fast and simple to change from one set up to another
• Cam action mitre lock function makes mitre setting faster and easier allowing the user to quickly adjust angles between 0° - 50° left and 0° - 60° right
• Long life Accuracy in Table and Fence Design
• The large dual sliding fence gives maximum support in large material cuts at any angle or combination of angles
• Linear horizontal rails utilise bronze guides to provide maximum precision when cutting materials up to 345 mm wide
• Compact and lightweight design characteristics deliver a saw with enormous capacity which is easy to transport around the jobsite
• Outstanding dust control and deflection away from cutting area
• The innovative grooving stop allows the adjustment of the cutting depth for grooving and rebating applications

Specifications:

• Power input: 1675W
• Power output: 960W
• Blade speed: 3800rpm
• Blade Diameter: 305mm (12")
• Blade bore: 25.4mm
• Bevel capacity:
• Left: 49°
• Right: 49°
• Mitre capacity:
• Left: 50°
• Right: 60°
• Cutting capacity:
• 90°/90° (W x H): 303mm x 110mm
• 90°/90° (W x H): 345mm x 76mm
• 45°/90° (W x H): 268mm x 63mm
• 45°/90° (W x H): 345mm x 44mm
• 90°/45° (W x H): 211mm x 112mm
• 90°/45° (W x H): 244mm x 76mm
• 45°/45° (W x H): 212mm x 76mm
• Max depth of cut: 170mm
• Dimensions (L x D x H): 770mm x 470mm x 396mm
• Weight: 24.8kg
