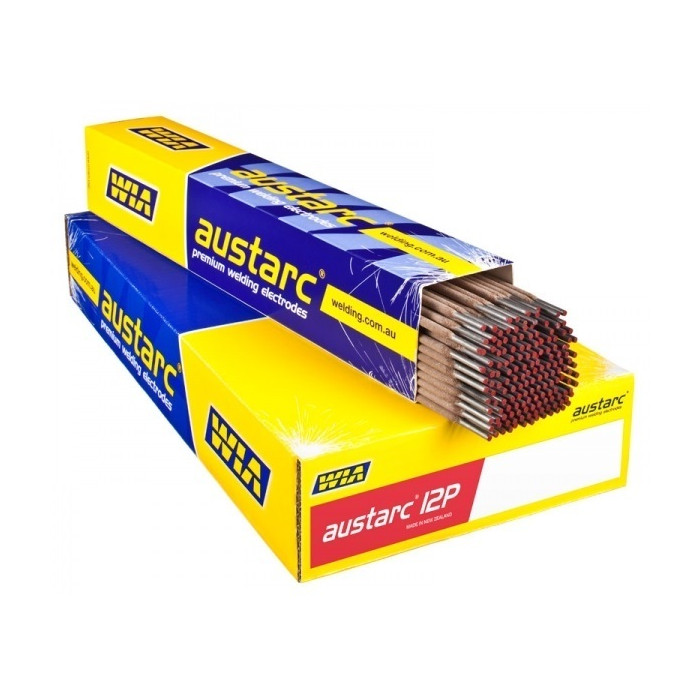

Premium Welding Electrodes 3.2 x 380mm 5kg Austarc 12P

$89.90

SKU

12P32

Barcode

9314656792525

Buy 3 for $84.90 each and save 6%

Easy starting, smooth running, popular all positional mild steel general purpose electrode. Austarc 12P has the extra arc force and fast freezing slag required for vertical down welds. With great operator appeal, it’s the ideal general purpose choice for the ‘one electrode’ workshop.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

WIA 12P32 Premium Welding Electrodes 3.2 x 380mm 5kg Austarc 12P

Austarc 12P is a smooth running, rutile type electrode for all positional welding of mild steel. It is characterised by a moderately forceful and extremely stable arc. Superb arc starting and restriking on low voltage AC welding machines.

A stiff fast freezing slag for all positional (especially vertical down) fillet welding capabilities. Typical applications include, the all positional welding of galvanised gates/fences, steel furniture, trailers and wrought iron.

Features:

General Purpose Rutile Type Electrode
Versatile/All Positional Capabilities Including Vertical Down
Smooth Performance on Low OCV AC Welding Machines

Applications:

Wrought Iron
Trailers
Steel Furniture
General Purpose Structural Steel
Galvanised Gates and Fences

Identification:

Coating - Brown
Tip - Red
Imprint: WIA 4313A

Classification:

AS/NZS 4855-B - E43 13 A
AWS A5.1: E6013

Specifications:

Electrode Size: 3.2mm
Electrode Length: 380mm
Welding Current Range: 90 - 130A (*Recommended for DC +/- or AC (minimum 45 OCV) operation)
Arc Voltage Range: 21V
Yeild Stress: 450MPa
Tensile Strength: 500 MPa
Elongation: 26%
CVN Impact Values: 70J @ 0ºC
Packet Weight: 5kg
Approx No. of Rods per kg: 31

More Information

More Information
Model Number	12P32
gtin	9314656792525
Brand	WIA
