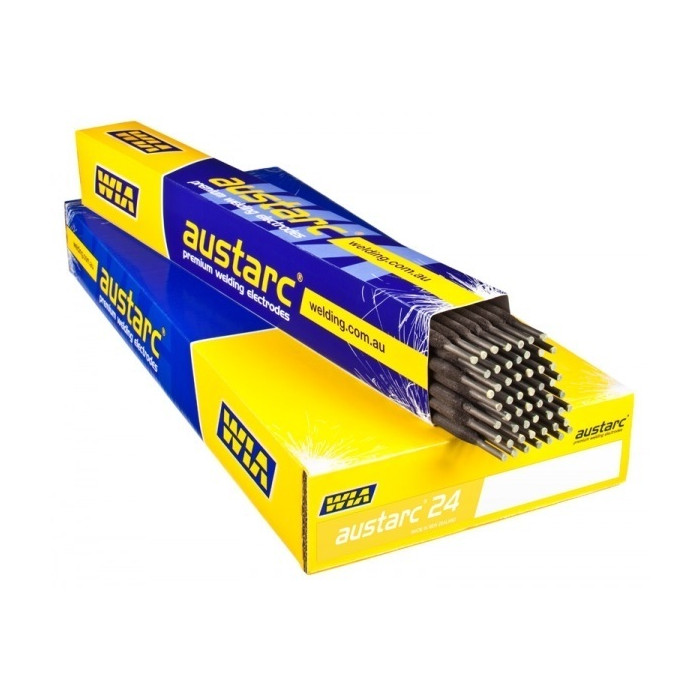

Electrode Iron Powder 4.0mm 5.0KG Austarc 24 AWS A5.1: E7024
$82.90
SKU
2440
Barcode
9314656847393
Suited to long, heavy fillet and butt welding using the touch welding or ‘short arc’ technique and can be used on AC or DC power sources.
Suited to long, heavy fillet and butt welding using the touch welding or ‘short arc’ technique and can be used on AC or DC power sources.
It’s instant arc initiation, high arc stability, and low spatter combines in an excellent fillet weld contour, edge washing and slag release. It is recommended for high quality down hand welding of heavy sections where high deposition rates are required.
Typical Applications:
Typical applications include tanks, structural frames, tractor, truck and trailer bodies, rolling stock, roof trusses etc.
Applications:
- Tractor, Trucks and Trailor Bodies
- Tanks
- Structural Frames
- Roof Trusses
- Rolling Stock
Processes:
- SMAW
- MMAW
Classification:
- AS/NZS 4855-B - E49 24 A
- AWS A5.1: E7024
Specifications:
Typical All Weld Metal Chemical Analysis
- C: 0.05
- Mn: 0.99
- Si: 0.42
- P: 0.017
- S: 0.011
- Fe: Bal
Typical All Weld Metal Mechanical Analysis
- Yield Strength: 416 Mpa
- Tensile Strength: 510 MPa
- Elongation: 32%
- CVN Impact Values: 60J @ 0°C
| Model Number | 2440 |
|---|---|
| gtin | 9314656847393 |
| Brand | WIA |
