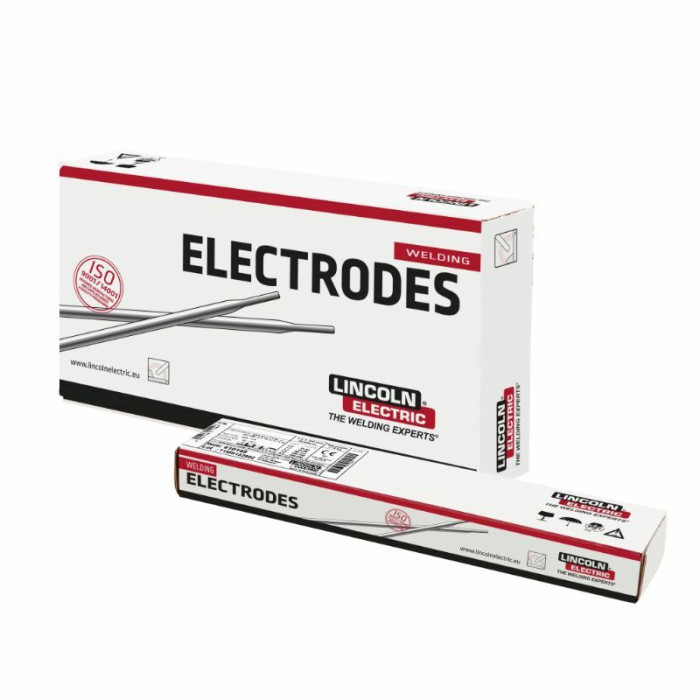

Stick Electrode Omnia® 46 3.2mm x 5.3kg Rutile General Purpose

Lincoln Electric 609061 Stick Electrode Omnia® 46 3.2mm x 5.3kg Rutile General Purpose

Key Features

• Rutile general purpose, all positions electrode
• Very suitable for low open circuit voltage transformers (min. OCV 42 V)
• Outstanding weldability
• Premium electrode Made in Europe

Typical Applications

• Applicable for “clean” structural steel (2.0, 2.5, 3.2 mm)
• Smaller diameters excellent for hobby market

Conformances

• AWS A5.1: E6012
• AS/NZS 4855-A: E 38 0 RC 11
• ABS, BV, DNV-GL, LR, RMRS: 2

Specifications

• Diameter: 3.2mm
• Length: 350mm
• Mechanical Properties:
  • Requirements - AWS:
    • Yield Strength (MPa) - 330 min
    • Tensile Strength (MPa) - 430 min
    • Elongation (%) - 17 min
    • Charpy V-Notch (J @ 0°C) - Not Specified
  • Requirements - AS/NZS:
    • Yield Strength (MPa) - 380 min
    • Tensile Strength (MPa) - 470 - 600
    • Elongation (%) - 20 min
    • Charpy V-Notch (J @ 0°C) - Min 47
  • Typical Results - As Welded:
    • Yield Strength (MPa) - 460
    • Tensile Strength (MPa) - 540
    • Elongation (%) - 27
    • Charpy V-Notch (J @ 0°C) - 65
• Deposit Composition:
  • Typical Results - As Welded:
    • %C - 0.06
    • %Mn - 0.5
    • %Si - 0.45
• Typical Operation Procedures - Current (Amps):
  • Polarity - AC/DC -
  • 2.5mm - 70-90
• Welding Parameters, Optimum Fill Passes:
  • PA/1G - 110A
  • PB/2F - 115A
  • PC/2G - 115A
  • PF/3G up - 110A
  • PG/3G down - 115A
  • PE/4G - 110A
  • PH/5G up - 110A
  • PJ/5G down - 115A
