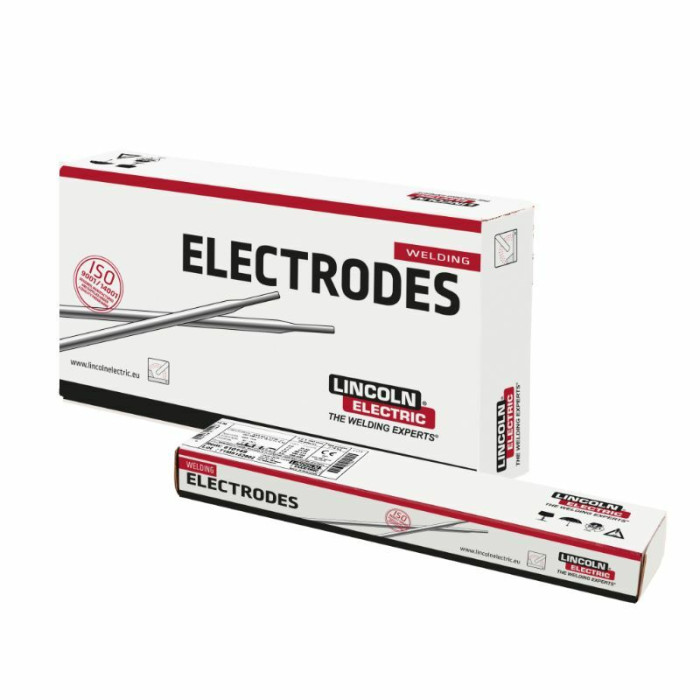

Stick Electrode Supra® 3.2mm x 4.8kg Rutile General Purpose

Lincoln Electric 588695-1 Stick Electrode Supra® 3.2mm x 4.8kg Rutile General Purpose

Key Features

• All position rutile electrode with excellent vertical down welding properties
• Weldable in all positions with one current setting
• Premium electrode Made in Europe

Typical Applications

• Shipbuilding repairs
• Excellent on painted or rust covered steel
• Recommended for bridging wide gaps

Conformances

• AWS A5.1: E6012
• AS/NZS 4855-A: E 38 0 RC 11
• ABS, BV, DNV-GL, LR, RMRS: 2

Specifications

• Diameter: 3.2mm
• Length: 350mm
• Mechanical Properties:
  • Requirements - AWS:
    • Yield Strength (MPa) - 330 min
    • Tensile Strength (MPa) - 430 min
    • Elongation (%) - 17 min
    • Charpy V-Notch (J @ 0°C) - Not Specified
  • Requirements - AS/NZS:
    • Yield Strength (MPa) - 380 min
    • Tensile Strength (MPa) - 470 - 600
    • Elongation (%) - 20 min
    • Charpy V-Notch (J @ 0°C) - Min 47
  • Typical Results - As Welded:
    • Yield Strength (MPa) - 470
    • Tensile Strength (MPa) - 550
    • Elongation (%) - 23
    • Charpy V-Notch (J @ 0°C) - 56
• Deposit Composition:
  • Typical Results - As Welded:
    • %C - 0.12
    • %Mn - 0.5
    • %Si - 0.6
• Typical Operation Procedures - Current (Amps):
  • Polarity - AC/DC -
  • 3.2mm - 95 - 130
• Welding Parameters, Optimum Fill Passes:
  • PA/1G - 115A
  • PB/2F - 115A
  • PC/2G - 120A
  • PF/3G up - 120A
  • PG/3G down - 120A
  • PE/4G - 120A
