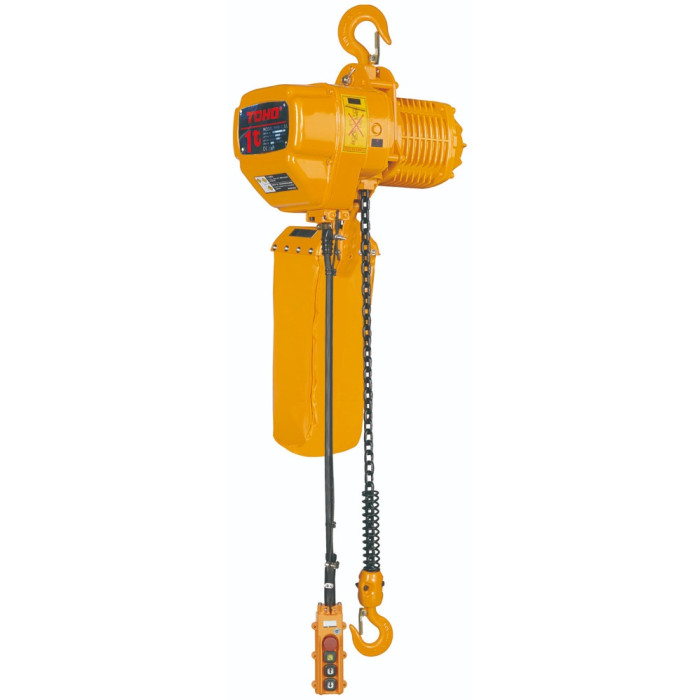

TOHO Electric Chain Hoist 1T 6M Three Phase 2 Speed

Garrick Herbert TECH-3PH-2SP-0106 TOHO Electric Chain Hoist 1T 6M Three Phase 2 Speed

Features:

• Load Limited
• Thermal overload prevention
• Lightweight, compact design with high efficiency motor
• Pressed steel structure, high strength body
• High tensile alloy steel top & bottom hooks
• Grade 80 - Alloy Steel load chain
• Limit switches fitted at top and bottom ends to prevent chain runout
• 415V, 50Hz Dual speed Motor (3 Phase)
• Complies with ASNZS1418.2 standard
• * Hoists can be re-chained to your required length (limits apply)

Specifications:

• Phase - 3-Phase
• Capacity - 1 Ton
• Standard Lift - 6m
• Running Test Load - 12.5kN
• Motor Power (kW) - 1.2kW
• No. of Chains - 1
• Dia of Chain - 7.1mm
• Lifting Speed (m/min) - 1.2/3.5
• Net Weight - 68kg
• Extra weight per metre of extra lift - 2.2kg
• IP Rating - Hoist: IP54 / Control: IP65
