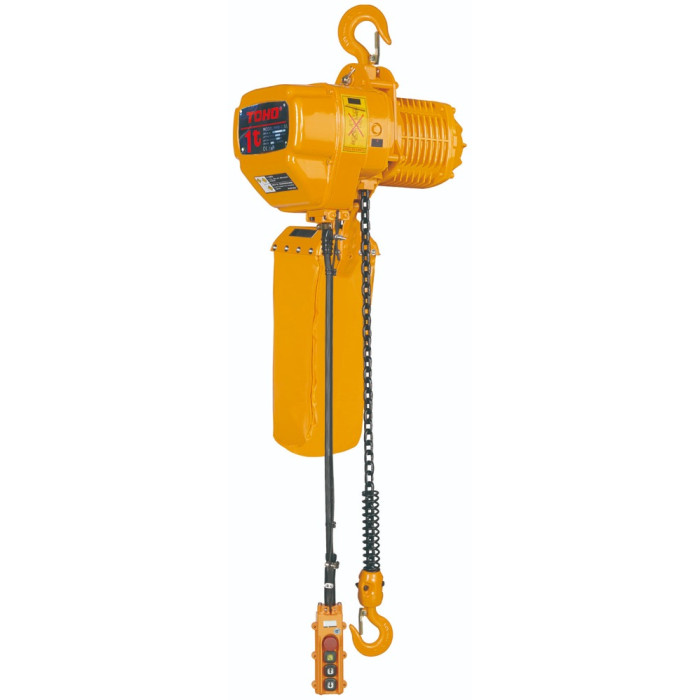

TOHO Electric Chain Hoist 5T 3M Three Phase 2 speed

Garrick Herbert TECH-3PH-2SP-0503 TOHO Electric Chain Hoist 5T 3M Three Phase 2 speed

Features:

• Load Limited
• Thermal overload prevention
• Lightweight, compact design with high efficiency motor
• Pressed steel structure, high strength body
• High tensile alloy steel top & bottom hooks
• Grade 80 - Alloy Steel load chain
• Limit switches fitted at top and bottom ends to prevent chain runout
• 415V, 50Hz Dual speed Motor (3 Phase)
• Complies with ASNZS1418.2 standard
• * Hoists can be re-chained to your required length (limits apply)

Specifications:

• Phase - 3-Phase
• Capacity - 5 Ton
• Standard Lift - 3m
• Running Test Load - 62.5kN
• Motor Power (kW) - 3.0kW
• No. of Chains - 2
• Dia of Chain - 11.2mm
• Lifting Speed (m/min) - 2.7/0.9
• Net Weight - 151kg
• Extra weight per metre of extra lift - 5.6kg
• IP Rating - Hoist: IP54 / Control: IP65
