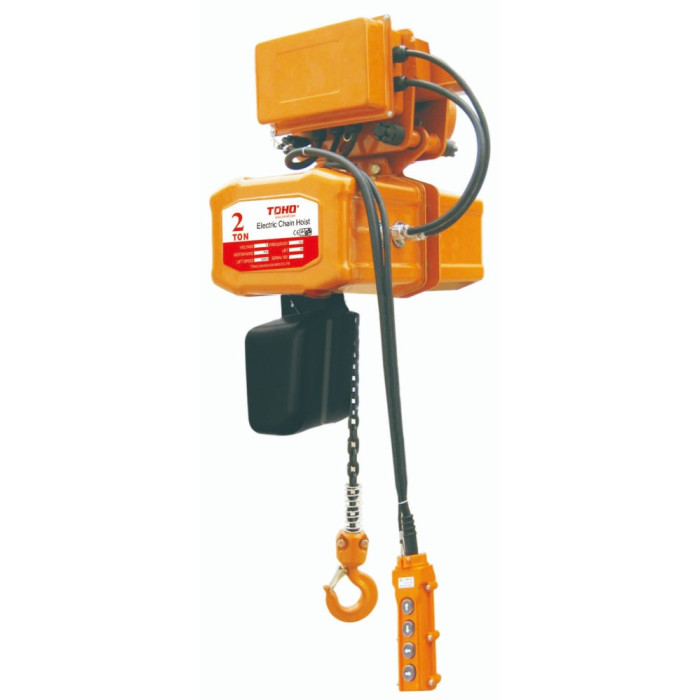

TOHO 240V Electric Chain Hoist 2T 6M Single Phase with Electric Trolley

Garrick Herbert TECH0206-ET TOHO 240V Electric Chain Hoist 2T 6M Single Phase with Electric Trolley

Features:

• Load Limited
• Thermal overload prevention
• Lightweight, compact design with high efficiency motor
• Pressed steel structure, high strength body
• High tensile alloy steel top & bottom hooks
• Grade 80 - 7.1mm Alloy Steel load chain
• Limit switches fitted at top and bottom ends to prevent chain runout
• 240V, 50Hz Single speed Motor 1200 Watts.
• * Hoists can be re-chained to your required length (limits apply)
• Optional TECH-RP Remote Pendant Control to suit TOHO Single Phase Electric Chain Hoist
• Complies with ASNZS 1418.2 standard

Specifications:

• Capacity (tonne) - 2T
• Standard Lift (meters) - 6m
• Running Test Load (kN) - 25kN
• Motor Power (kW) - 1.2kW / Trolley 300watt
• No. of Chains - 2
• Diameter of Chain (mm) - 7.1mm
• Lifting Speed (m/min) - 3m/min
• Net Weight (kg) - 71kg
• Extra weight per metre of extra lift (kg) - 2.2kg
• IP Rating - IP54 Hoist / IP65 Control
