12V Swivel Ute Crane 500/800kg Capacity
$1,099.00
SKU
UTECRANE500
Barcode
9343662004421

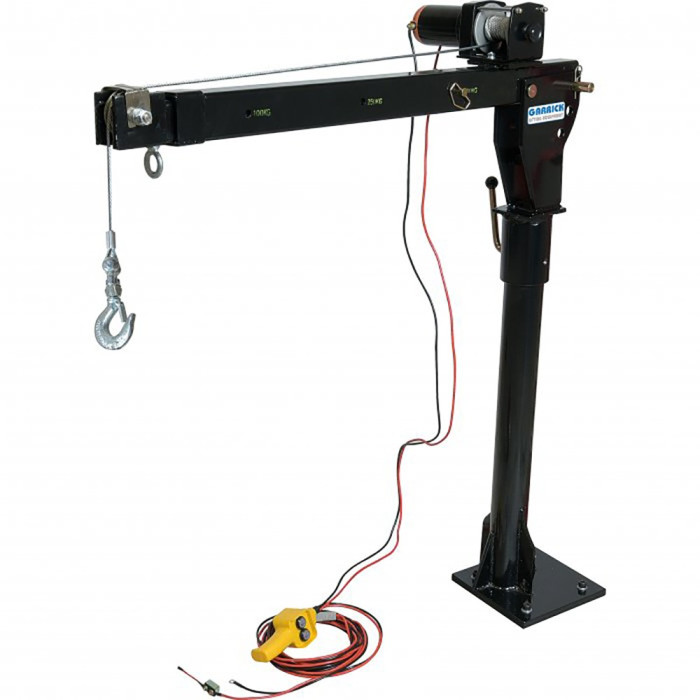

The Garrick utility crane is lightweight, portable & compact design for mounting onto ute's, service bodies, vans, trucks, loading docks, platforms for lifting goods on and off up to 500kg with a single line lift via the powerful 12 volt DC winch.
Garrick Herbert UTECRANE500 12V Swivel Ute Crane 500/800kg Capacity
Featured:
- *800kg capacity, when set up with double line lifting
- 500kg capacity, when set up with single line lifting
- 3 position telescoping boom : 500kg @ 930mm, 250kg @ 1180mm, 100kg @ 1430mm when set up with single line lifting
- Lifting electric winch: 12V DC 125amps
- 3 boom elevation angles: 3°, 20°, 40° raised manually
- 3.6m/min speed with no load & single line lift
- 360° continuous manual rotation of sealed thrust bearing
- Storage height folded (from base): 1300mm
- Lifting height (Base to hook): 1940mm
- 250 x 250 x 16mm mounting base plate with 170 x 170mm bolt holes centres
- Hand control with 4.2 metre cable
- Rotation hand lock
- Complies with Australian Standard AS1418.2
- Supplied with test certificate
Specifications:
- Single Line Lifting Capacity - 500kg
- Double Line Lifting Capacity - 800kg
- Lifting System - Electric Winch
- Power Supply - 12 Volt
- Lift Capacity Pin Locations - 500, 250 & 100mm
- Vertical Support - Ø86mm
- Extension Arm Support - 75 x 50mm
- Overall Height - Lowest Position - 1300mm
- Nett Weight - 64kg
| Model Number | UTECRANE500 |
|---|---|
| gtin | 9343662004421 |
| Brand | Garrick Herbert |
