Generator Utility Series 5000W Recoil Start – Petrol

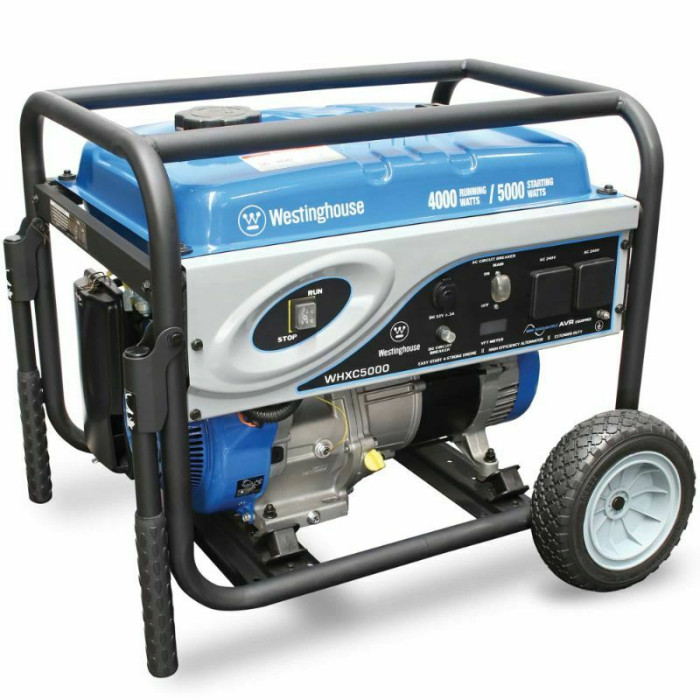

Westinghouse WHXC5000 Generator

Features:

• Reliable Performance - High output and fuel efficient Westinghouse 292 cc 4-stroke overhead valve petrol engine.
• Quiet Operation - Oversized Pulse-Flo muffler and anti-vibration rubber mount sensure low noise output.
• Long Running - Extended run time from the long range 25 litre fuel tank with integrated gauge and strainer.
• Safety Protection - Electrical overload circuit breakers and low engine oil level shutdown safeguards.
• Stable Power - Digital AVR controlled sine wave ouput for precise and stable electricity supply.
• Premium Features - Copper wound alternator, full steel roll frame, fold-down handles and Never-Flat wheels.
• Clean Air Technology - Compliant with Australian and US EPA emissions standards to minimise environmental impact.
• Easy to Use - Yellow-coloured touch points guide you to the controls required for normal operation.
• Plug and Play - Everything you need is in the box. Just add petrol. Minor assembly required.

Specifications:

• Engine

  • Type: 1-Cylinder, 4-Stroke, Overhead Valve, Air Cooled
  • Displacement: 292
  • Speed (rpm): 3,000
  • Oil Capacity (mL): 1,000
  • Low Oil Shutdown: Yes
  • Spark Plug: Torch F6RTC
  • Fuel: Unleaded Petrol
  • Fuel Tank Capacity (L): 25
  • Fuel Gauge: Yes
  • Starting Method: Recoil
  • Hour Meter: Yes
  • Run Time @ 50% Output (hr): 18.7
  • Noise Level @ 100% Output: 76 dB(A) @ 7m

• Dimensions

  • Length: 735mm
  • Width: 700mm
  • Height: 655mm

• Weight

  • Dry Weight: 71 kg
  • Wet Weight: 90 kg

• 240 Volt AC Electrical

  • Voltage (V): 240
  • Frequency (Hz): 50
  • Number of Phases: 1
  • Continuous Running Power*: 4,000 Watts

    • * Rated output at 1.0 power factor.
  • Maximum Starting Power (W): 5,000
  • Continuous Running Current (A): 16.7
  • Alternator Windings: Copper
  • Voltage & Waveform Control: Digital Automatic Voltage Regulator Sine Wave Output
  • Receptacles: 2 × 15 A, IP44
  • Overload Protection: Circuit Breaker
  • Digital VFT Meter: Yes
  • Electrical Enclosure: IP23

• 12 Volt DC Electrical

  • Voltage (V): 12
  • Maximum Current (A): 8.3
  • Maximum Power (W): 100

Warranty Protection

• 2-year domestic use warranty to safeguard your investment (conditions apply).
