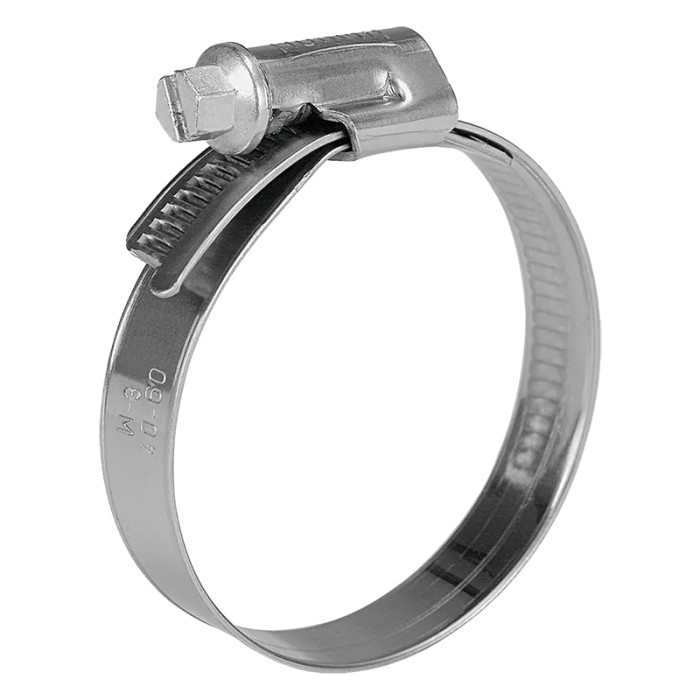

Hose Clamp 60-80mm Stainless Steel Worm Drive Plain Band
$6.00
SKU
577134
NORMACLAMP® TORRO® multi-range hose clamps are ideally suited to applications with high mechanical loads. Thanks to the continuous developments these products have undergone, they remain the benchmark within modern clamp construction. Within the NORMACLAMP® range, only the TORRO® has its trademark asymmetrical construction.
Toolex 577134 Hose Clamp 60-80mm Stainless Steel Worm Drive Plain Band
Features:
- Smooth inside of band
- Multi-range hose clamp.
- The asymmetric housing provides high force, superior torque and even distribution of clamping pressure.
- Clamp aligns perfectly on the hose and ensures the optimal sealing of the connection.
- No chromium(VI) used for coating purposes.
- Clamping ranges in acc. with DIN 3017: 8-12 mm to 140-160 mm.
- Improved asymmetric housing – even distribution of forces and safe assembly.
- Screw support – ease of assembly due to the safe guidance of the emerging band end.
- Material and clamping range stamped on the band – prevention of errors.
- Asymmetric extension – prevents the housing from tilting over when the clamp is tightened.
- Short housing saddle – even contact pressure.
- Smooth or stamped inside of band – optimal hose protection.
Applications:
- Joining cooling water lines
- Depressurized and pressurized fuel lines and ventilation systems
- Oil lines
- Joining lines in sanitary applications
- Joining lines in machine building applications
- Lines in the household appliance industry
- Hose lines in the commercial vehicle industries
Specifications:
- Band Width - 12mm
- Diameter Range - 60-80mm
- Material Type - W3 (Stainless Steel)
- Corrosion resistance in salt spray testing - Min. 200h (Max 10% base metal corrosion permissible)
| Model Number | 577134 |
|---|---|
| Brand | Toolex |
