Hand Tap 1/4" BSPT Bottoming HSS

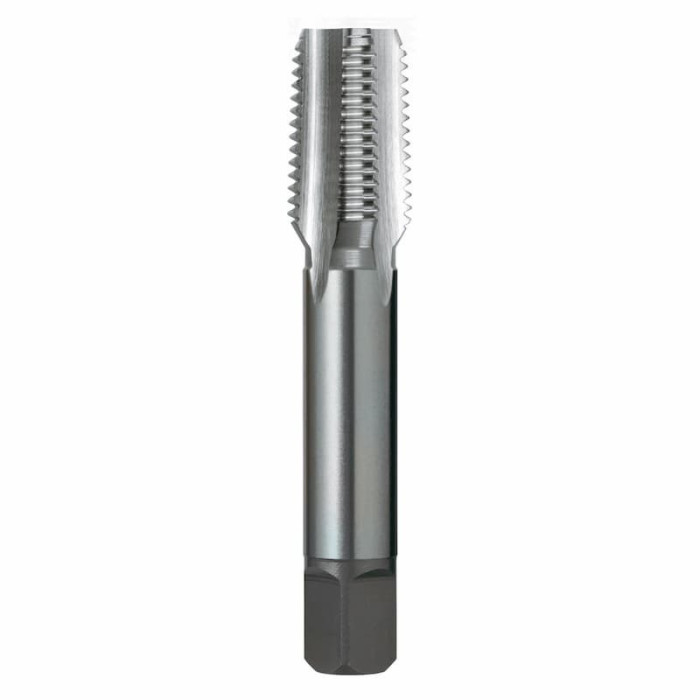

Toolex 514298 Hand Tap 1/4" BSPT Bottoming HSS

BSPT is based on the Whitworth thread form - a symmetrical V-thread with an angle of 55°. BSPT has been widely adopted internationally for interconnecting and sealing pipe ends by mating an external (male) with an internal (female) thread. The thread diameter increases along the length of the thread allowing the coupled pipes to form a seal when torqued as the flanks of the threads compress against each other.

Features:

• British Standard Pipe Taper (RC Series Pipe Taper)
• BSPT has been widely adopted internationally for interconnecting and sealing pipe ends
• The thread diameter increases along the length of the thread allowing the coupled pipes to form a seal when torqued
• Bottoming taps have a lead of two threads and are used to ensure minimum thread run-out when tapping to the bottom of a blind hole.
• Bottoming taps have a lead of two threads and are used to ensure minimum thread run-out when tapping to the bottom of a blind hole.
• Manufactured from high speed steel material to International DIN standards.
• The loose range of taps are available in Taper, Bottoming and Intermediate styles in all sizes.
• Suitable for materials up to 1000N/mm2.
• Suitable for both hand & machine operation.
• The taps are bright finished with straight flute.

Specifications:

• Size - 1/4"
• Lead - Bottoming
• Thread Form - BSPT
• Material - High Speed Steel (HSS)
