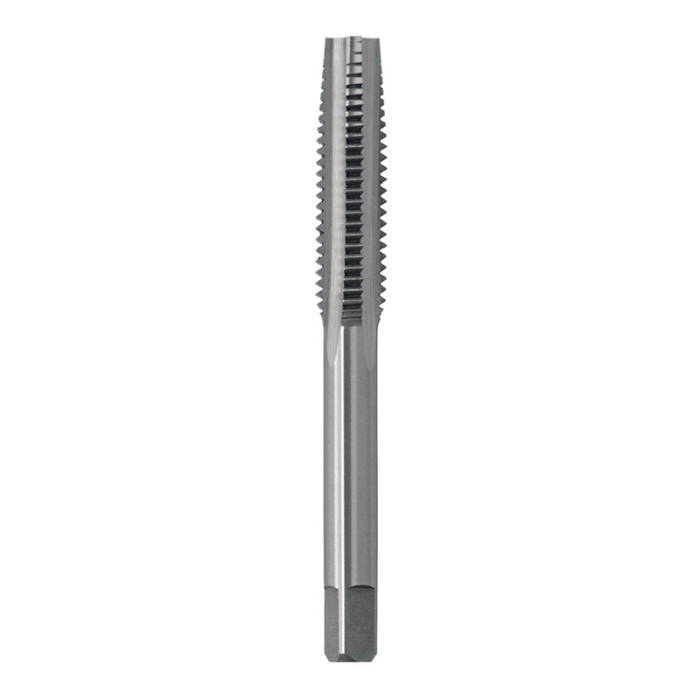

Hand Tap M4.5 x 0.75mm Metric HSS Taper Tap

Toolex 514015 Hand Tap M4.5 x 0.75mm Metric HSS Taper Tap

This metric coarse and fine tap has a flat crest and the thread has clearance at the root allowing external thread and internal thread to engage well. Larger root radius and lower thread height enable easy screw thread processing and increase thread screw strength. The major diameter of external thread and pitch are specified by a simple numerical value (most commonly measured in millimeters).

Features:

• Manufactured from high speed steel material to International DIN standards (DIN352/351).
• Available in Taper, Bottoming and Intermediate styles in all sizes.
• Suitable for materials up to 1000N/mm2.
• Suitable for both hand & machine operation.
• Bright finished with straight flute.
• Taper Taps have a lead of eight threads and are used as a starting tap in difficult or high precision holes.

Specifications:

• Size - M4.5 x 0.75mm
• Lead - Taper
• Material - High Speed Steel (HSS)
