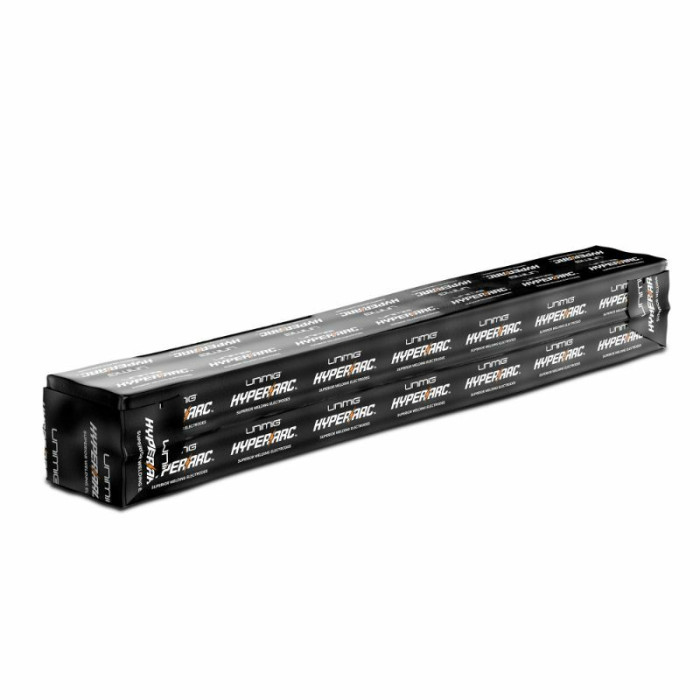

Electrodes Low Hydrogen Hyperarc 7018 2.6mm - 2kg
$35.90
SKU
U63011
Barcode
9333521006581
The HYPERARC 7018 is a Hydrogen controlled iron powder electrode. With its all positional capabilities (except vertical down) it is the ideal choice for high deposition welding.
UMIMIG U63011 Electrodes Low Hydrogen Hyperarc 7018 2.6mm - 2kg
Features:
- Excellent arc stability
- High penetration
- Less spatter
- Concentrated arc
- Applications -
- Structural Steel Fabrication
- Pressure Vessel welding
- Repair work for Agriculture and mining machinery
- Ship building and repairs
Classification:
- AS/NZS 4855: B E 4918 A U H10
- AWS/ASME SFA5.1: E7018
Approvals:
- Lloyds Register of Shipping
- ABS
- DNV
Specifications:
- Recommended Current - AC & DC+
- Mechanical Analysis -
- Yield Stress - 483 MPa
- Tensile Strength - 599 MPa
- Elongation - 28%
- Impact Test - 128J @ -40°C
- Operating Data -
- Electrode Size - 2.6mm
- Electrode Length - 300mm
- Current Range - 50-90A
- Chemical Composition (%) -
- C - 0.04%
- Mn - 0.874%
- Si - 0.231%
- P - 0.023%
- S - 0.01%
- Weight - 2kg (Vacuum Seal)
| Model Number | U63011 |
|---|---|
| gtin | 9333521006581 |
| Brand | Unimig |
