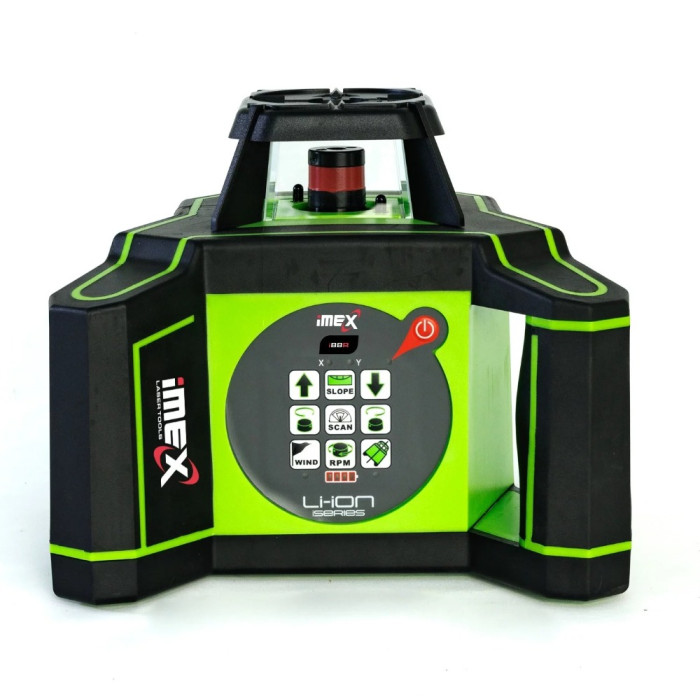

3.7V 9.0Ah Li-ion Cordless Red Beam Rotating Laser Kit

Imex 012-I88R 3.7V 9.0Ah Li-ion Cordless Red Beam Rotating Laser Kit

The simplified design elements and robust componentry also mean reduced calibration and service requirements. All backed by Imex warranty, service and innovative approach.

Includes:

• 1 x LRX10 Detector
• 1 x Remote control unit
• 1 x USB cable
• 1 x 9.0Ah Lithium battery
• 1 x Car charger
• 1 x Target plate
• 1 x Hard carry case

Features:

• Robust construction tough horizontal/vertical laser level
• Horizontal/Vertical self levelling (electronic). 600m range. Dual manual grade slope
• 9Ah lithium-ion battery – approx 24 hour run time
• USB quick charge port with car charger
• LRX10 Digital Detector in mm reading German made
• 90mm Detector reading ultra fine, fine, medium, course and ultra course
• Scan Mode – Allows for part beam rotation in selected working environments, i.e. on interior walls, busy work-sites where other laser interference may be present. Various scan lengths and rotation placement
• Dual Grade – Grade slope to 5° (8.8%) in two directions, X and Y axis Simultaneously for true grade control. Ideal for pipe layout or concrete slab falls
• Plumb Spot – Top and bottom plumb spot beam to assist in set ups over a point
• Accuracy – +/- 1.5mm @ 30 metres for excellent results every time
• Remote Control Panel – allows grade or other functions to be carried out up to 20 m away from the instrument, for true one-man operation and greater efficiency
• Hi-Visibility Case – unique Imex feature, easy to see on the busiest construction site, minimises the risk of the unit being bumped, increasing safety and accuracy

Specifications:

• Power: 9Ah 3.7V lithium-ion
• Self Levelling Range: ±5°
• Working Distance: 600m Diameter
• Function: Horizontal/vertical
• Scan mode: Yes, 0°, 10°, 45°, 90°, 180°
• Slope mode: Yes, Single manual grade to 5° 8.8%
• Accuracy: 1.5mm @ 30m
• Rotation Speeds: 0, 60, 120, 300, 600rpm
• Waterproof/Shockproof: IP66
• Light Source: Red laser diode, 535nm Class II
• Detector: LRX10 Double Sided
• Working time (continuous use): 24 hours approx
• Charging Time: 4 hours in unit or removed from unit
• USBC Charging: Yes; including 12v car charger
• High Wind Sensitivity Re-set: Yes
• Remote Control: Yes, iCR8
• Detector Reading:
  • Ultra fine: 0.5mm
  • Fine: 1.0mm
  • Medium: 2.0mm
  • Course: 5.0mm
  • Ultra course: 10.0mm
• Detector Power: 1-AA > 50 hrs run
• Weight: 2.48kg

Warranty:

• 5 Years Warranty covered by Imex Australia
