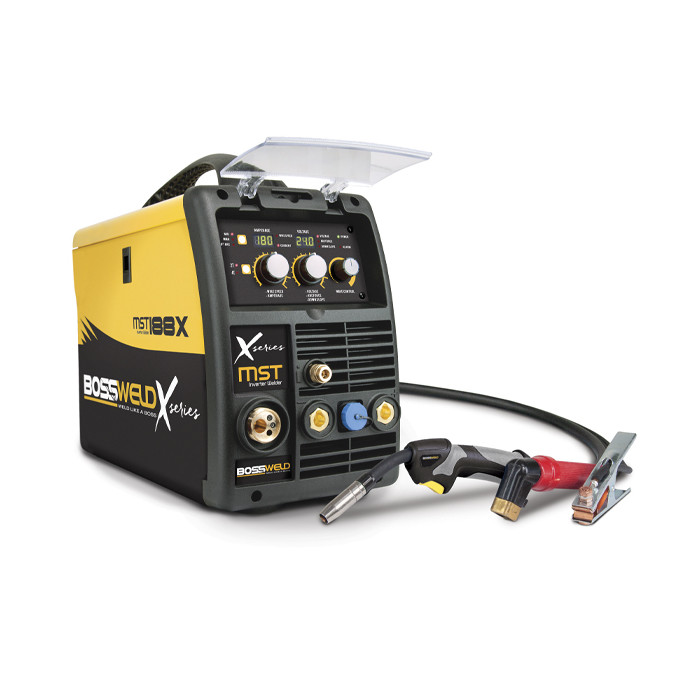

Bossweld X-Series MST 188X MIG/STICK/TIG Inverter Welder
$899.00
SKU
699188
The MST 188X is a lightweight and portable multi process inverter based welder that gives the welder the possibility to MIG, STICK and TIG weld from the same machine, making it the ideal choice for your next welding project.
Bossweld 699188 Multipurpose Welder X-Series 188X MST 240V 10Amps
Features:
- Multiprocess Welder
- 180Amp Output
- Spool Size – 1Kg & 5Kg
- LCD Digital Display
- DC TIG Lift Arc Function
- Stepless Control
- Spool Gun Ready
- Gas / Gasless Operation
- 2T / 4T Trigger Control
- Generator safe
- Materials - Aluminium (Mig Only), Mild steel, Stainless Steel, Brass, Cast Iron
- Wire Size - Upto 0.9mm
- Electrode Size - Upto 3.2mm (Ideal - 2.6mm)
- 3 Year warranty
Specifications:
- Primary Power - Single Phase 240V 50-60 Hz +/- 15%
- Duty Cycle @40°C - MIG/TIG/MMA 10% @ 180A
- Open Circuit Voltage - MIG 58.5V
- Output Current Range - MIG 40-180 Amps
- MMA/TIG 10-180 Amps
- I Max -
- MIG - 37.5A
- TIG - 29.5A
- MMA - 44A
- I eff -
- MIG/MMA - 10 A
- TIG - 9.5 A
- Wire Diameter - 0.6mm to 1.0mm
- Electrode Diameter Range - 1.6mm to 3.2mm
- Thermal Overload - Yes
- Minium (kVA) - 9kVA
- Dimensions - 55 x 39.5 x1.4 cm
- Weight - 12.5 Kg
Package Includes:
- MST 188X Inverter Welder
- 3Mt Ergon BZ15 MIG Torch
- 3Mt Twist lock Electrode Holder
- 3Mt 200Amp Earth clamp
- 2Mt Gas Hose
- Bossweld Twin Gauge Argon Regulator
- Operator Manual
- Drive Rollers
- 0.8 / 0.9mm V Groove Roller (fitted
- 0.8 / 0.9mm Knurled spare
| Model Number | 699188 |
|---|---|
| Brand | Dynaweld |
