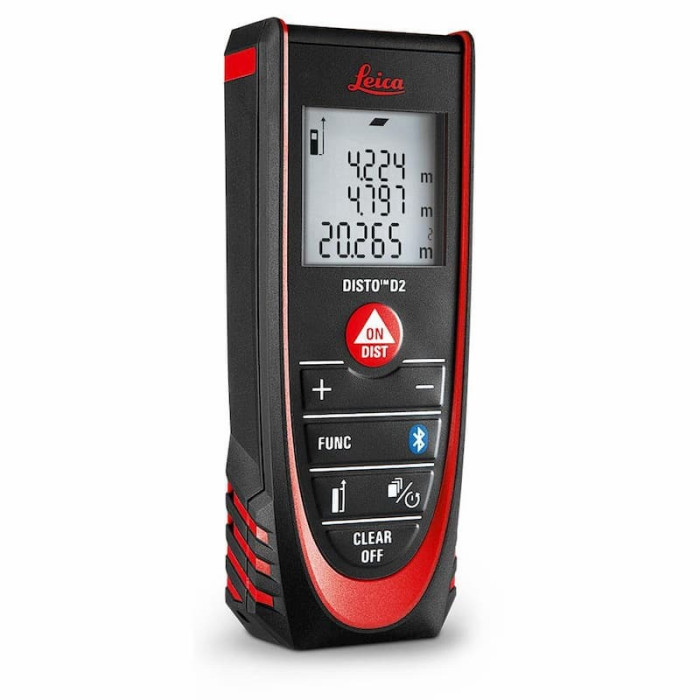

Leica Disto D2 Distance Meter BlueTooth 100M

SKU: LG837031
Sign up for price alert

Model: LG837031
Availability: Yes

$249.00
Calculate Shipping

Description

Details

Product Features

Painter Function

When the DISTO is in area or volume mode, you can use the add / subtract function to total up the area of several surfaces, or subtract an area, like a door for example, from a measurement.

Bluetooth Smart (4.0)

Send measurements directly to your apps using Bluetooth Smart.

Add & Subtract

It's not always so simple as taking one shot to get the measurement you need. Sometimes its handy to add multiple shots together, or subtract a negative space from a measurement.

Min / Max Function

In Min/Max mode, you "sweep" the laser point into a corner. The longest measurement is recorded. Very useful for accurate diagonal room or window/door measurements.

Pythagoras Function

The key is to make sure your second shot -- the "rectangular shot" -- is perpendicular to the point you are measuring, shown as the 90° angle in the images. The best way to ensure accuracy is to use a tripod and an adapter.

Stake Out Function

The stake out function uses the continuous measurement mode to indicate where to place stakes along a stake-out line. Ideal for any situation where you need to place objects at a consistent interval. The display shows the distance to the next stake out point and the DISTO beeps as you approach it.

Intelligent Endpiece

The endpiece is an integral part of the tool, connected to the circuit board.

In the closed position the DISTO knows to measure from its base.

Flip it open 90 degrees to align the base perfectly on an edge or corner.

Flip it out all the way and you can put this baby in a corner to accurately measure diagonals. Otherwise, the width of the base would prevent you from getting all the way into the corner, rendering the measurement inaccurate.

IP54

"IP" stands for Ingress Protection.

The Ingress Protection (IP) rating was developed by the European Committee for Electrotechnical Standardization (CENELEC) to create a standard of toughness for electronic devices: Higher numbers mean more resistance to dust and water.

Product Specifications

TYPICAL MEASURING ACCURACY

1/16” / ± 1.5 mm

ISO 16331-1 CERTIFIED RANGE

up to 330 ft / up to 100 m

MEASURING UNITS

0.000 m, 0.00 ft, 0'00" 1/16, 0 in 1/16

MEMORY

Last 10 values

DATA INTERFACE

Bluetooth® Smart V4.0

MEASUREMENTS PER SET OF BATTERIES

up to 10,000

MULTIFUNCTIONAL END-PIECE

Yes, Intelligent recognition

BATTERIES

2x AAA 1.5 V (Ships with alkaline)

DISPLAY

3 line display with illumination

PROTECTION CLASS

IP 54, dust & splash protected

DIMENSIONS

4.57 x 1.73 x 1.02 in / 116 x 44 x 26 mm

WEIGHT WITH BATTERIES

3.53 oz / 100 g

MINIMUM / MAXIMUM MEASUREMENTS

Yes

AREA / VOLUME CALCULATION

Yes

PYTHAGORAS FUNCTIONS

2 points, 3 points

STAKE-OUT FUNCTION

Yes, single value

PAINTER FUNCTION

Yes

SUBTRACTION / ADDITION

Yes

TIMER FUNCTION

Yes, variable

BEEP

Yes, switchable on/off

OPERATING TEMPERATURE RANGE

14°F to 122°F / -10°C to 50°C

STORAGE TEMPERATURE RANGE

-13°F to 158°F / -25°C to 70°C

EAN/UPC

7640110696354 (US, CAN) / 7640110696347 (Global)
