Rugby 620 Kit with Rod Eye 160

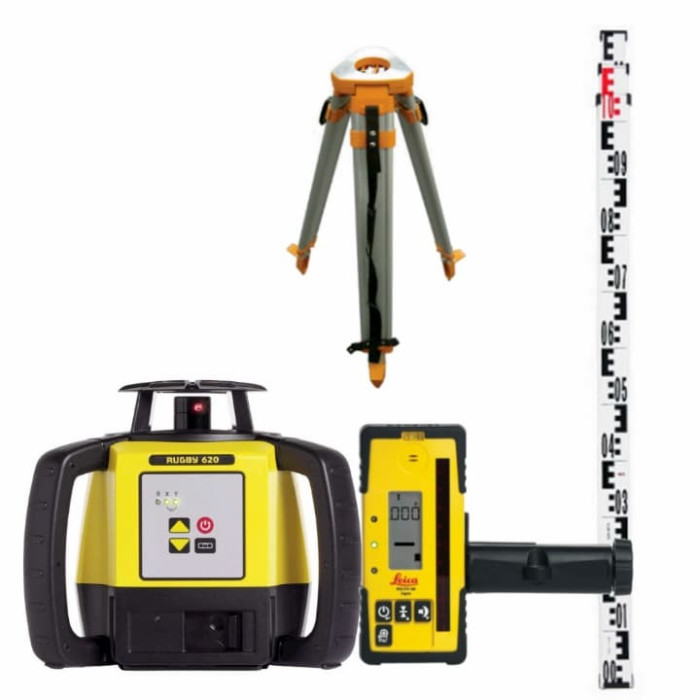

Leica Rugby 620 With Rod-eye 160 Digital Receiver - Package Kit (Incl. Al Tripod & 3m Staff)

Leica Rugby 620 Rotating Laser

Features:

• Concrete forming, pad placement and framework levelling; setting foundations and footings has never been more efficient
• Slope matching up to 8% in single axis

Specifications:

• Functionality: Self-levelling Horizontal And Manual Slope In One Axis
• Range (Diameter): 1,100 M
• Self-levelling Accuracy (Defined At 25°c): ± 2.2 mm @ 30 M
• Self-levelling Range: ± 5°
• H.i. Elevation Alert: Yes
• Rotation Speeds: 10 Rps
• Laser Diode Type / Class: 635 Nm / Class 1
• Dimensions: 212H X 239W X 192D mm
• Weight With Batteries: 2.6 Kg
• Protection Class (Splash Water / Dust Proof): Ip67
• Operating Temperature Range: -20° To +50°c

Leica Rod-Eye 160 Digital Receiver

Features:

• The Rodeye 140 laser is part of the new line up of laser detectors available from Leica.
• This workhorse of a detector replaces the old Leica Rodeye Classic, Rodeye Plus & Rodeye Pro.
• This new unit also includes the new industry beating 12cm detection window for easier location of the laser beam.

Specifications:

• Working diameter (laser dependent): 1350 m
• Detection height:120 mm
• Numeric readout height: 90 mm
• Detectable spectrum: 600 nm to 800 nm
• Very fine: ± 0.5 mm
• Fine: ± 1.0 mm
• Medium: ± 2.0 mm
• Coarse: ± 3.0 mm
• Very coarse: ± 5.0 mm
• Audio volumes: 105 dBA / 95 dBA / 65dBA / Off
• Automatic shut off: 10 minutes
• Digital readout: Units: mm, cm, in, in (fractions), ft
• Arrow display: 15 channels
• Anti-strobe protection: Yes
• Memory, last beam strike: Yes
• Beam finding (double beep): Yes
• Laser low battery indicator: Yes
• Warranty: Three years
• Environmental: IP67
• Batteries: 50+ hours (2 x 1.5 V "AA")
• Dimensions: 173 x 76 x 29 mm
• Operating temperature: -20°C to +50°C
• Storage temperature (except batteries): -40°C to +70°C

Aluminium Tripod

• Light duty tripod with shoulder strap.
• Light-weight and long lasting making it suitable for GNSS antennas, prisms and levels.
• Packaged length 107cm (3.51ft), extendible to 176cm (5.77ft), weight 4.6kg (10.1lb).
