Laser Distance Measuring Device Rugged Pack with TRI120 Tripod

Leica S910-P2P-RUGGED-PK (LG887900) Laser Distance Measuring Device Rugged Pack with TRI120 Tripod

Smart Base -- a biaxial pivot integrated with the circuit board -- is the key hardware innovation. Combined with a more powerful laser, a 360° tilt sensor, and new software --SmartBase enables the S910 to measure the distances and angles between multiple points.

In the vast majority of cases you will want a tripod to use these functions. In addition to an S910, the Pro Pack includes a TRI120 Tripod and a FTA 360-s adapter.

Even with a tripod and outdoor pointfinder camera, placing your laser point exactly where you want it can be challenging, especially at longer distances. The FTA 360-S is a micro-adjustable tripod adaptor. Point and shoot to get close, then tweak the knobs ever so slightly to adjust your spot by millimeters. The S910 connects to compatible mobile apps with Bluetooth and exports DXF files over WiFi.

The Leica DISTO S910 is the first LDM that captures multiple, accurate measurements in three dimensions from a single location, radically improving the efficiency of common measuring tasks.

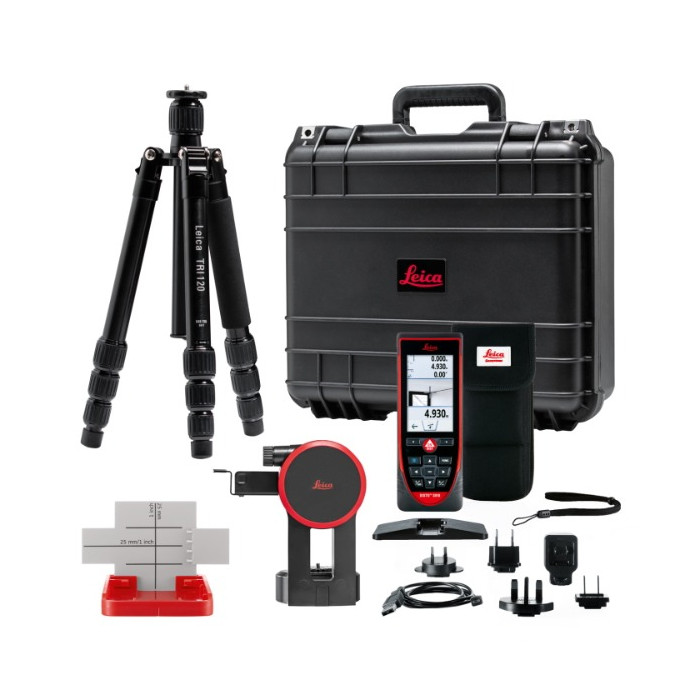

Includes:

• 1 x DISTO S910
• 1 x TRI 120 Tripod
• 1 x GZM3 Target plate
• 1 x Extra rugged carry case
• 1 x (NEW) FTA 360-S.

Features:

• Single measurement 300m range
• 1.5mm accuracy @ 5m
• Bluetooth Smart (4.0) sends measurements directly to your apps using Bluetooth!
• Measure in picture
• Diameter function uses measure in picture technology to determine the diameter of cylindrical objects
• Smart horizontal mode determines the horizontal distance to a target when you have to aim over an obstacle
• Min/Max Function - just sweep the laser point into a corner. The longest measurement is recorded!
• Area / Volume - determines the area of a rectangle or square in two shots
• Triangle Room function - does the room have more than four corners? No problem! Thise mode will do all the work!
• Painter Function
• Pythagoras Function
• Trapezium Function
• Sloped Object Measurement
• Height Tracking
• Height Profile Tracking
• Stake Out Function
• Touch Screen makes it easy for you to switch between functions in picture mode!
• Building Information Modelling
• 4x Zoom Pointfinder Camera - Your display can show you where the dot is if the naked eye can't see it!
• 360° Tilt Sensor
• Add & Subtract function
• Memory Stores The Last 30 Displays
• Timer - set the timer to delay a measurement the way you would a camera!
• Rechargeable battery!
• IP54
• Inbuilt Compass
• Personalise your favourite buttons!
• SmartBase facilitates three new remote measurement  functions:
  • Point to Point (P2P): Measure the tie distance between two points, even if you are hundreds of feet from your target. Shoot Point 1 then Point 2 and the S910 displays the distance between them. Widths, heights, diagonals, gaps, it doesn't matter: Just measure the start and end point and the distance is displayed.
  • Smart Area: Shoot the corners of any polygon to determine the area of walls, floors, even complex roof shapes.
  • Smart Angle: Shoot three points to measure any angle (including outside angles, which is a first).

Specifications:

• ISO 16331-1 Certified Measuring Accuracy (favourable conditions): 1.0mm / ±0.04"*
• ISO 16331-1 Certified Measuring Accuracy (unfavourable conditions): 2.0mm / ± 0.08"**
• ISO 16331-1 Certified Range (favourable conditions): 0.05m - 300m / 0.16ft - 984ft
• ISO 16331-1 Certified Range (unfavourable conditions): 0.05m - 150m / 0.16ft - 492ft
• Smart Base Vertical Range: -40° to 80°
• Smart Base Vertical Sensor Tolerance: Up to +/- 0.1°
• Smart Base Horizontal Range: 360°
• Smart Base Horizontal Tolerance: Up to +/- 0.1°
• Tolerance P2P Function At Distances (combination of sensors and distance measuring): Approx. +/-2mm, 2m+/- 5mm, 5m +/- 10mm, 10m
• Measuring Units: 0.000m, 0.0000m, 0.00m, 0.00ft, 0'00" 1/32, 0.00 in, 0 in 1/32
• X-Range Technology: Yes
• Pointfinder With 4x Zoom: Yes
• Overview Camera: Yes
• File Format: .jpg / .dxf
• Memory: Last 50 displays
• Windows Software: DISTO Transfer with AutoCAD plugin
• Free App: iOS / Android
• Data Interface: Bluetooth V4.0 Smart/WLAN/USB
• Measurements Per Set Of Batteries: ~4000
• Storage Temp. Range: -25 to 60°C OR -13 to 140°F
• Operating Temp. Range: -10 to 50°C OR 14 to 122°F
• Charging Temp. Range: -10 to 40°C OR 14 to 104°F
• Batteries: Li-ion rechargeable
• Tripod Thread: -20
• Protection Class: IP54 - Splash water/dust proof
• Dimensions (L x W x H): 61mm x 32mm x 164mm
