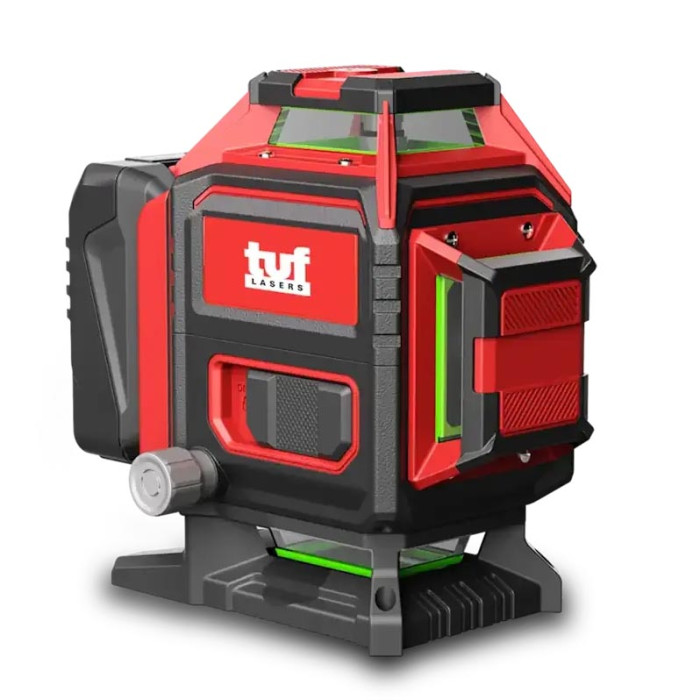

TUF 4x360° Green Beam 4D Laser Kit with Magnetic Bracket

Leica TUF LCG4 4x360° Green Beam 4D Laser Kit with Magnetic Bracket

Features:

• High Visibility: Uses a 515 nm green beam for superior visibility compared to standard red lasers.
• 4D Coverage: Projects two horizontal and two vertical 360° laser lines for comprehensive layout work.
• Impressive Range: Offers an operational range of up to 70m when used with a receiver.
• Precision Accuracy: Delivers high accuracy of ±2mm at 10m (±0.2mm/1m).
• Self-Levelling: Features pendulum levelling with a range of ±3.5° and includes a manual slope function via the pendulum lock.
• Durable Design: Rated IP54 for protection against dust and water splashes, making it suitable for job site conditions.
• Convenient Charging: Equipped with USB-C charging for modern, easy power management.

Specifications:

• Accuracy - ±2mm / 10m
• Laser lines -
  • Horizontal: 2×360°
  • Vertical: 2×360°
• Range with receiver - Up to 70m
• Levelling range - ±3.5°
• Levelling - Pendulum levelling
• Slope function - Manual (via pendulum lock)
• Tripod thread - 1/4" and 5/8"
• Laser wave length - 515 nm
• Laser classification - Class 2, <1 mW
• Power - 12V battery pack
• Protection - IP54
• Dimensions - 62 × 117 × 153 mm
• Weight - 0.5 kg
• Operation temperature: -10° to +40°
• Storage temperature: -20° to +70°
