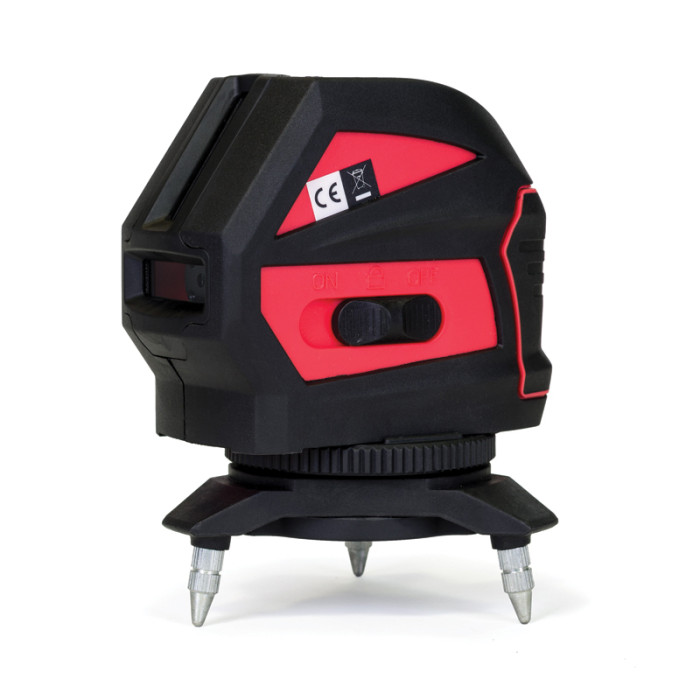

Tuf Red Crossline Laser Beam Red X Line

TUF Lasers TUFXLINER Tuf Red Crossline Laser Beam Red X Line

Features:

• Automatic Leveling
  • When the pendulum is unlocked, the pendulum is free to automatically level
  • In order for the Cross Line Laser to automatically level, the base of the unit needs to be within 5° of level
  • When the pendulum is unlocked and the Cross Line Laser is within 5° of level, the unit will be in automatic leveling range, in this situation no LED light will be on
  • Should the base of the unit be outside the 5° leveling range the laser beam will flash meanwhile an audibly warning will be sent out from Cross Line Laser
• The TUF Cross Line Laser is a precision instrument and should be treated with care
• When not in use, the pendulum should always be in the Off position
  • Locking the pendulum allows the Cross Line Laser to better withstand vibration and trauma incurred during transportation or if the unit is dropped
• Locked Line Angle
  • In the locked line angel position, the pendulum is in the locked position and will not automatically level
  • When in the locked line position, both two laser lines will be on and flash slowly
  • The Red Lock LED will be on as well
• Low Battery Alarm
  • The Green battery LED will be on and keep flashing slowly when the working voltage is 3V
  • At this situation the batteries are required to be replaced

Specifications:

• Horizontal Beam - 180°
• Accuracy of horizontal line - ±3 mm@10m
• Vertical accuracy - ±2.5 mm@10m
• Leveling Range - 4° ± 0.5°
• Working Range - 20m (50m with detector)
• Tripod Thread - 1/4" , 5/8"
• Laser Type - 635 nm, laser class II
• Operating Temperature - -10°C to 45°C
• Storage Temperature - -20°C to 60°C
• Dimensions - 119 x 62 x 95mm
• Continuous Working Time (All Diodes) - 8hour
