Powercraft 4-In-1 10amp Multi Process Welder 200M

$2,199.00
SKU
K69074-2
Barcode
9329590008694

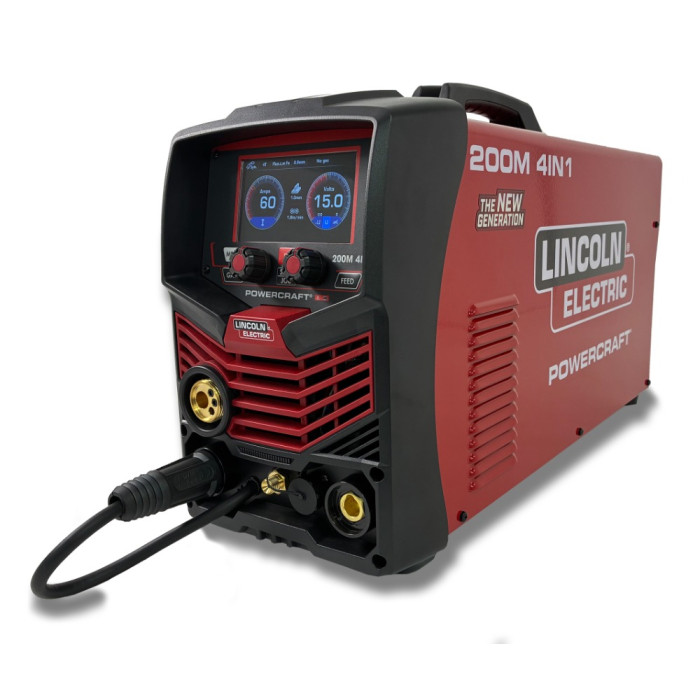

The Lincoln Electric K69074-2 Powercraft 200M is a powerful and versatile 4-in-1 multi-process electric welder, delivering 200 amps of output from a standard 240V/10A power source. Designed for MIG, flux-cored, stick, and pulse AC/DC TIG welding (including Lift TIG DC and High Frequency AC/DC TIG), it features a full-colour LCD display and enhanced EZYSET synergic technology for easy setup. Ideal for workshops, contractors, and DIY users, it comes ready to weld with all essential accessories, including MIG and TIG torches, electrode and return leads, gas hose, flowmeter, and more. Backed by a 3-year warranty, this welder meets AS/NZ60974-1 standards and weighs just 22kg for portability.

Lincoln Electric K69074-2 Powercraft 4-In-1 10amp Multi Process Welder 200M



Features:

  • Leading 10amp 4in1 Multi-Purpose Welder
  • 200amp output and 240v/10amp output
  • Brand new larger full colour LCD Display
  • Improved EZYSET synergic technology
  • Capable of MIG, flux-cored, stick or pulse AC/DC TIG (including Lift TIG DC and High Frequency AC/DC TIG)
  • Includes ready to weld package
  • LCD screen for accurate setting and feedback of welding output
  • New PWM technology and IGBT inverter technology
  • Active PFC technology for increased duty cycle and energy efficiency
  • Multi voltage input, can use with long extension lead
  • Internal wire feeder, gear driven for up to 200mm diameter spool
  • Euro style MIG torch connection
  • IP21S rating for environmental/safety protection
  • Spool gun connection

Inclusions:

  • 1 x Powercraft 200M Power Source
  • 1 x 3m MIG Gun
  • 1 x 3m TIG torch
  • 1 x 5m Electrode Lead
  • 1 x 5m Work Return Lead
  • 1 x Gas Hose
  • 1 x Flowmeter
  • 1 x 3m Input Lead with 10amp plug
  • 1 x Drive Roll 0.9/1.2mm core
  • 1 x Drive Roll 0.6/0.8mm solid
More Information
Model NumberK69074-2
gtin9329590008694
BrandLincoln
Specifications

Specifications:

  • Primary Input Voltage: 240V Single Phase
  • Supply Plug: 10 Amp
  • Protection Class: IP21S
  • MIG Welding Current Range: 30-200A
    • MIG Duty Cycle:
      • 10% @ 200A
      • 60% @ 85A
      • 100% @ 65A
  • TIG Welding Current Range: 10-200A
    • TIG Duty Cycle:
      • 20% @ 200A
      • 60% @ 115A
      • 100% @ 90A
  • STICK Welding Current Range: 10-200A
    • STICK Duty Cyle:
      • 10% @ 200A
      • 60% @ 85A
      • 100% @ 65A
  • Certifications: AS/NZ60974-1
  • Dimensions (L x W x H): 600mm x 220mm x 300mm
  • Weight: 22kg

Warranty:

  • 3 Year Warranty Covered by Lincoln Electric
