LN-25® PRO® Dual Power Wire Feeder

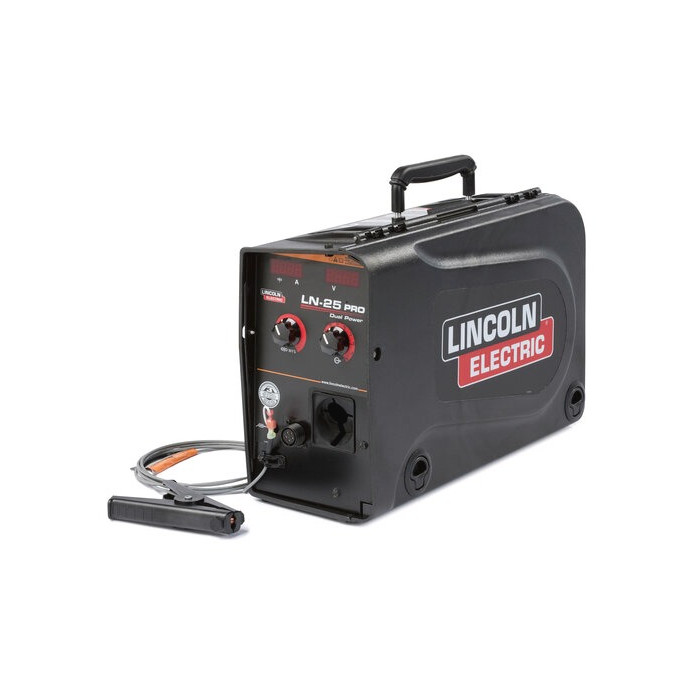

Lincoln Electric K2614-6 LN-25® PRO® Dual Power Wire Feeder

Features:

• Maxtrac® Wire Drive System - Heavy-duty cast aluminum wire drive system provides reliable feeding and durability.
• Dual Range Wire Feed Speed - Delivers greater precision at low end wire feed speeds.
• Trigger Interlock Switch - Provides operator comfort for long welds.
• Replaceable and Flame Resistant Case - Rugged and durable case can be replaced in less than five minutes.
• Potted PC Boards - For moisture and corrosion protection.

Specifications:

• Dimensions (H x W x D) - 381 mm x 221 mm x 589 mm (15 in x 8.7 in x 23.2 in)
• Net Weight - 16 kg (37 lbs)
• Max Rating - 450 A
• Input Voltage - 15-110 VDC, 24-42 VAC
• Wire and TIG Feeders
  • Number of driven rolls - 2 rolls
  • Feeder type - Portable
  • Configuration - Single
  • Max spool diameter - 300mm
  • UI type - Meters
  • Max Wire Diameter (Solid) - 1.6 mm (1/16 in)
  • Max Wire Diameter (Cored) - 2 mm (5/64 in)
  • Feedhead Configuration - Single
  • Wire Configuration - Single
  • Gun Bushing - Tweco #2-#4
  • Wire Feed Speed Range (IPM) - 50-700
  • Wire Feeders Processes -
    • MIG
    • MIG-STT
    • Flux Cored
  • Safety Listing CSA - Yes
  • Safety Listing UL - Yes
• Typical Application -
  • Construction & Field Erection
  • General Fabrication
  • Heavy Equipment
  • Heavy Fabrication
  • Structural Fabrication
• Warranty - 3 Years
