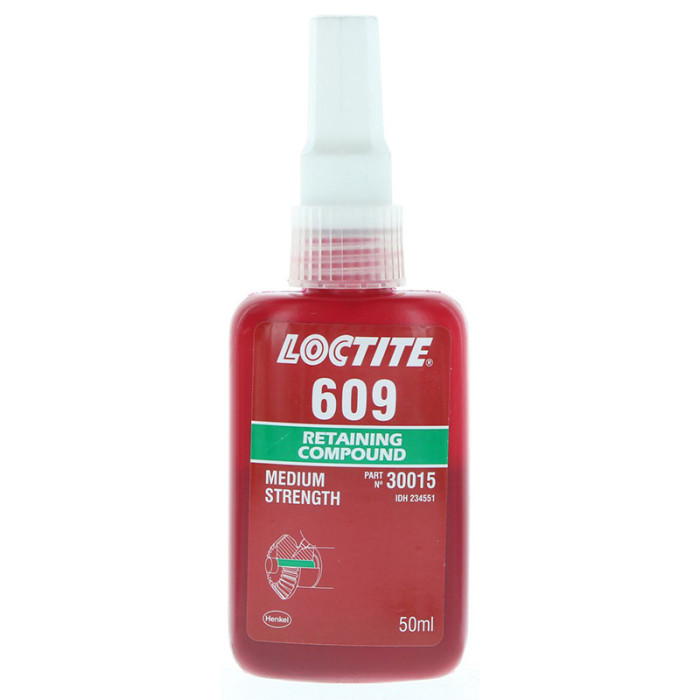

Loctite 609 Retaining Compound Medium Strength 50ml
$48.90
SKU
609-50ML-LOC
Barcode
9310743001099
Loctite 609 is a green, high strength methacrylate ester acrylic retaining compound designed for the bonding of cylindrical fitting parts. The product cures in the absence of air between close fitting metal surfaces. Typical applications include rotor to shafts in fractional and subfractional horsepower motors. Locks bushings and sleeves in housings on shafts. Augments press fits.
Loctite 609-50ML-LOC Loctite 609 Retaining Compound Medium Strength 50ml
Features:
- Excellent load transmission and chemical resistance
- Prevents fretting corrosion
- Used to bond rotors to shafts
- Used to secure bushings and sleeves
- Augment press fit applications
- Ideal for pulleys, sprockets, sleeves, gears, augmenting keyways couplings and bearings
Specifications:
- Colour - Green
- Strength - Medium
- Fixture Time# - 25 min
- Full Strength# - 24 hrs
- Maximum Gap Fill Diameter - 0.20mm
- Compressive Shear Strength# N/mm² (PSI) - 15.8 (2,300)
- Temperature Range: -54ºC to +150ºC
- Recommended Activator - 7471
- Disassembly Method - Press
- Size - 50ml bottle
# Steel pin & collar, cured for 24 hours @ 22ºC.
| Model Number | 609-50ML-LOC |
|---|---|
| gtin | 9310743001099 |
| Brand | Loctite |
