Electronic Oil Meter 3/4"
$1,099.00
SKU
IM019E-01
Barcode
9317147735599
In-line oval gear meter with electronic register designed to measure lubricating oils. Flow range of 3-80L/min. Accurate reading to +/- 0.5% with maximum pressure to 10,350 kPa (1,500 psi). Large LC display shows batch and cumulative totals. Fitted with 3/4" BSP(F) ports.

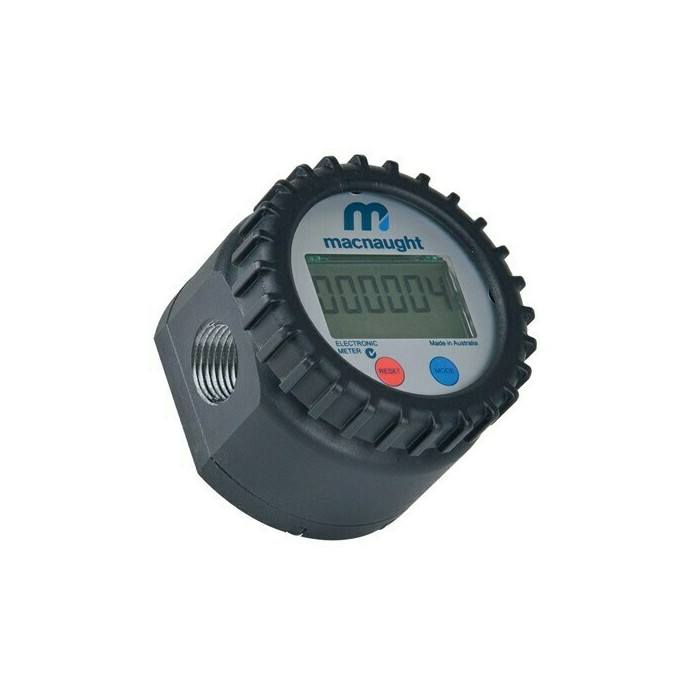

MacNaught IM019E-01 Electronic Oil Meter 3/4"
Specifications:
- Digital display showing both cumulative & push-button reset batch totals
- Suitable for oils up to SAE 140, automatic trans fluid, engine oil, gear oil, hydraulic oil coolant, diesel, kerosene
- Flow rate up to 3 – 80LPM
- Accurate reading to +/-0.5% with maximum pressure to 10,350kPa (1,500psi)
- 3/4" BSP(F) inlet/outlet ports
- 6-digit digital display resettable batch totaliser, resettable and non-resettable totals flow rate mode
| Model Number | IM019E-01 |
|---|---|
| gtin | 9317147735599 |
| Brand | Macnaught |
