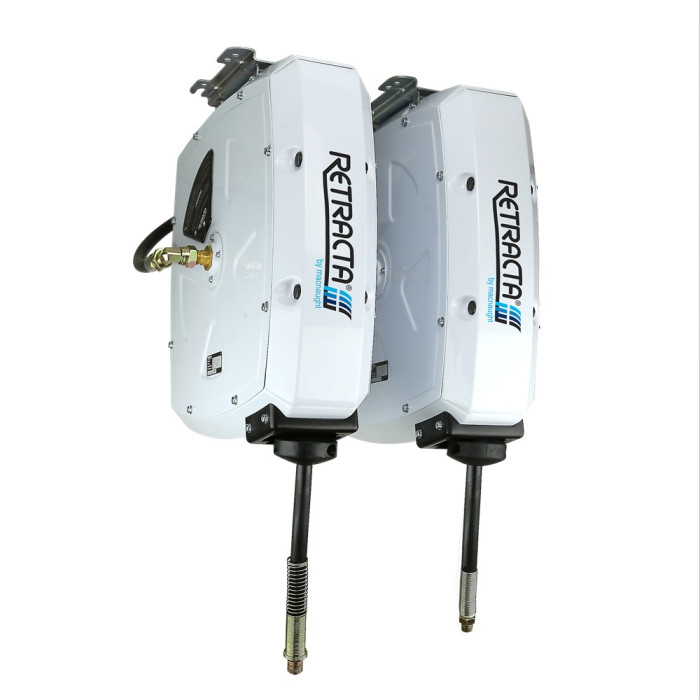

Workshop Air / Water Reel 10mm (3/8”) Retracta E-Series - 15m
$1,399.00
SKU
ESAW1015-01
Barcode
9317147738873
Retracta E-Series fully enclosed hose reels have been developed to serve the needs of the Automotive industry. The neat, narrow design accommodates high density mounting in tight workshop bay environments. The E-Series hose reel is enclosed in a powder coated steel housing designed to protect against the ingress of contaminants while offering a sleek, clean appearance. Quality, industry standard hose and fitting used throughout. Fully repairable via simple side panel removal.
Macnaught ESAW1015-01 Workshop Air / Water Reel 10mm (3/8”) Retracta E-Series - 15m
Features:
- Narrow body - Made from powder coated, pressed steel for rigidity and protection.
- Narrow footprint allows close mounting
- Fully repairable - All parts available, no special tools required
- Easy tensioning mechanism - Easy access to tensioning device. No special tools required.
- Easy access to swivel - No need to disassemble the entire reel to access the swivel for maintenance or hose change
- Models available for multiple fluids Oil, coolant, grease, compressed air and water
- Includes feeder hose
Applications:
Automotive industry, Transport workshop, Truck workshop, Regional farming centre, Farming industry.
Specifications:
- Application - Air/Water
- Hose Size (ID) - 10mm (3/8")
- Hose Length - 15m
- Hose Material - Reinforced PVC
- Working Pressure - 200 psi
- Max Temperature - 50°
- Reel Inlet - 3/8" BSP (F)
- Hose Outlet - 3/8" BSP (M)
| Model Number | ESAW1015-01 |
|---|---|
| gtin | 9317147738873 |
| Brand | Macnaught |
