Mechanical Oil Inline Meter
$929.01
SKU
IM012KMM-01
Incorporating oval gear technology, combined with heavy duty construction and a quality mechanical register display, this in-line meter range offers reliable and accurate fluid measurements for most oil applications. The mechanical register shows both cumulative and push button reset batch total. The meter is ideally suited for use in both inline meter applications or fitted to a hose end oil control gun.

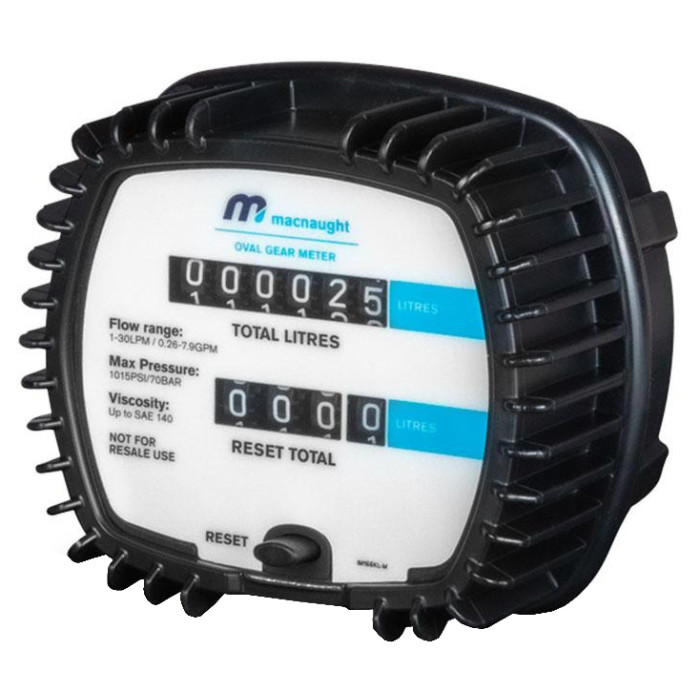

Macnaught IM012KMM-01 Mechanical Oil Inline Meter
Features:
- Small versatile design, ideal for mobile use
- Shock absorbing housing protection
- Oval gear mechanical meter, gears are made of acetal resin
- Mechanical 6 digit totaliser with resettable 999.9 litre batch total
- Ready to use
Specifications:
- Flow Range: 1-30 L/min
- Maximum Pressure: 1000 psi / 6895 kPa / 69 bar
- Minimum Temperature: -10ºC
- Maximum Temperature: 60ºC
- Meter / Register: Oval gear / Mechanical
- Accuracy (Flow Rate): +/- 1% (lube oils)
- Inlet Port: 1/2”BSPT (F)
- Outlet Port: 1/2”BSPT (F)
- Compatible Fluids: Oils up to SAE140
- Accumulative Totaliser: 6 Digit Resettable Totaliser: 999.9 litre
Warranty:
- 24 Months Warranty Covered by Macnaught
| Model Number | IM012KMM-01 |
|---|---|
| Brand | Macnaught |
