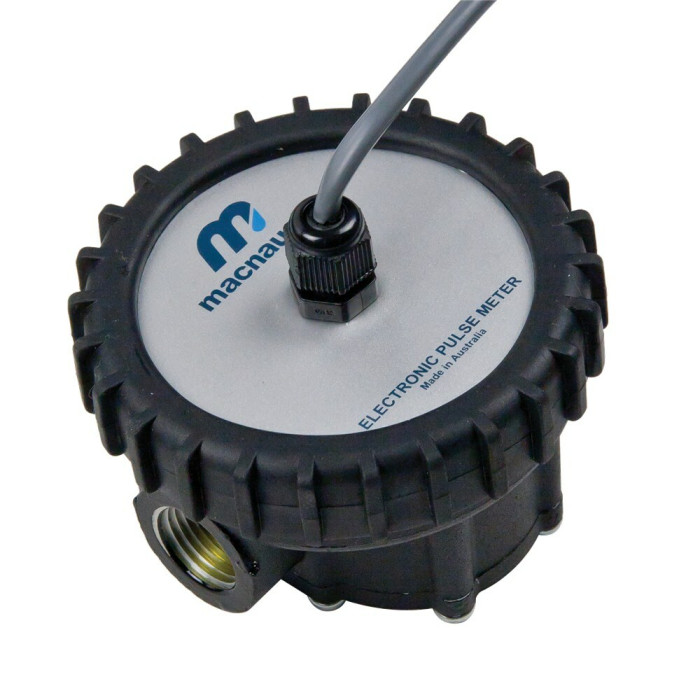

Electronic Pulse Oil Meter - 1/2"
$529.00
SKU
IM012P-01
Barcode
9317147735995
In-line oval gear meter with pulse output only, designed to measure lubricating oils. Flow rate up to 30L/min. Accuracy is around +/- 0.5% of reading with maximum pressure to 6,900 kPa (1,000 psi). Fly Lead is included to allow connection to other devices. Fitted with 1/2" BSP(F) ports.
MacNaught IM012P-01 Pulse Oil Meter - 1/2"
Specifications:
- IM012 meter with pulse output only
- Suitable for oils up to SAE 140, automatic trans fluid, engine oil, gear oil, hydraulic oil coolant, diesel, kerosene
- Includes 1m fly lead either reed switch and/or half effect sensor
- Flow range up to 1 – 30LPM
- Accurate reading to +/- 0.5% with maximum pressure to 6,900kPa (1,000psi)
- 1/2" BSP(F) inlet/outlet ports
| Model Number | IM012P-01 |
|---|---|
| gtin | 9317147735995 |
| Brand | Macnaught |
