Electronic Pulse Oil Meter - 3/4"
$799.00
SKU
IM019P-01
Barcode
9317147735926
In-line oval gear meter with pulse output only, designed to measure lubricating oils. Flow rate up to 80L/min. Accuracy is around +/- 0.5% of reading with maximum pressure to 10,350 kPa (1,500 psi). Fly Lead is included to allow connection to other devices. Fitted with 3/4" BSP(F) ports.

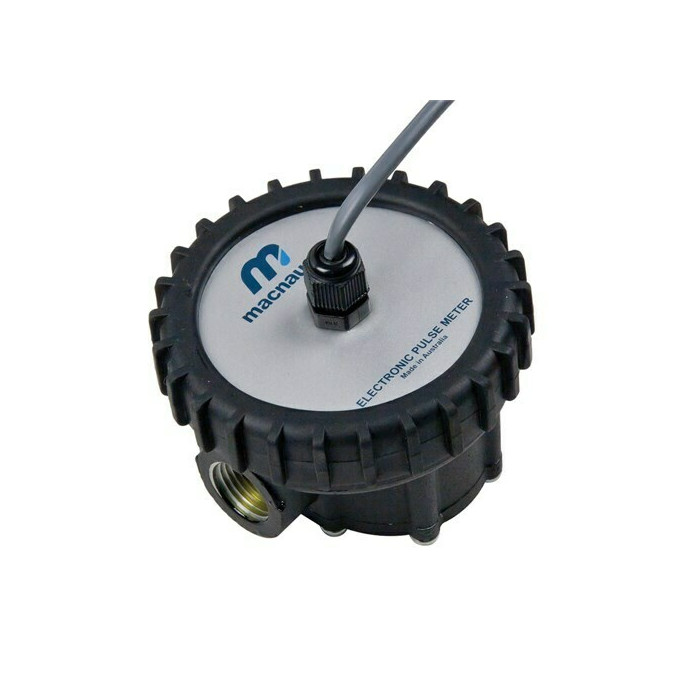

MacNaught IM019P-01 Pulse Oil Meter - 3/4"
Specifications:
- IM019 meter with pulse output only
- Suitable for oils up to SAE 140, automatic trans fluid, engine oil, gear oil, hydraulic oil coolant, diesel, kerosene
- Includes 1m fly lead either reed switch and/or half effect sensor
- Flow range up to 3 – 80LPM
- Accurate reading to +/- 0.5% with maximum pressure to 10,350kPa (1,500psi)
- 3/4" BSP(F) inlet/outlet ports
| Model Number | IM019P-01 |
|---|---|
| gtin | 9317147735926 |
| Brand | Macnaught |
