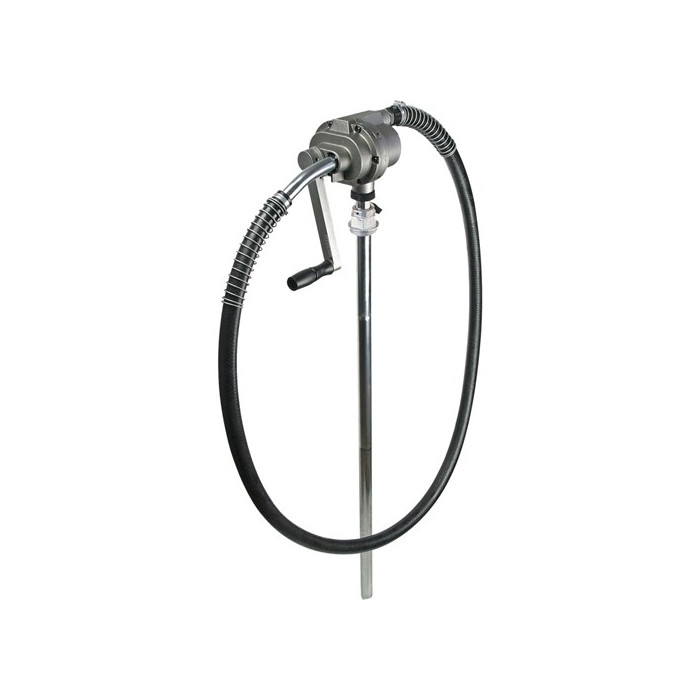

RAPIDFLO Rotary Fuel Pump Bio Diesel

GT RAPIDFLO Bio-Diesel model is a rotary action fuel and oil pump for 205L drums and is supplied with 2-piece suction tube, pump handle, 2" bung adaptor, 2.4m anti-static delivery hose and nozzle tube. Typical output is easily up to 100L/min depending on viscosity. Suitable for bio-diesel, kerosene and light oils up to SAE 30 viscosity. Rotary pumps allow delivery in both directions and are typically easy to prime.

Features & Benefits:

• Rotary action pump incorporating a gearbox for high output and easy operation - Ideal for high volume fuel transfer
• Delivers 800ml per revolution - Able to achieve flow rates up to 100L/min (in both directions)
• 2.4m anti-static rubber hose - Suitable for pumping petrol, diesel, light oils and kerosene
• Built-in 193 micron strainer - Protects your fleet from fuel contamination
• Built-in nozzle holder - Allows nozzle to be fixed in non-siphoning position
• Lockable handle - For added security when pump is unattended
• Three piece suction tube - Allows length of suction tube to be adjusted to accommodate different height drums
• Built-in 2" sliding bung adaptor - Suits different height drums from 60L - 205L
• Robust aluminium housing screwed together - For ease of service and maintenance
• Anti-kink springs - Prevents hose from restricting fluid delivery
• Fully repairable - Provides longer service life
• Optional (HA-01) 10 micron fuel filter available - For extra protection in fuel deliveries
• Optional (HNU) Fuel Nozzle - Suitable for transferring ULP and diesel

Technical Specifications:

• Suitable for 60L - 205L drums
• Delivers 800ml per revolution (Up to 100L/min)
• 2.4m anti-static rubber delivery hose
• 3/4" BSP threaded pump outlet
• Suitable for use with diesel, ULP, kerosene and oils (up to SAE30)
• Wetted components: aluminium, steel, zinc, nitrile rubber and viton

Package Includes:

• RAPIDFLO™ Bio diesel pump
• 2.4m anti-static rubber delivery hose
• Three piece suction tube
• Built-in 2" sliding bung adaptor
