Air/Water Reel Single Pedestal - 9mm x 20m
$989.00
SKU
MAS1020-01
Barcode
9317147730266
Macnaught standard duty metal hose reels are ideal for those applications where occasional use is normal. These reels are constructed in powder coated steel with a single pedestal and integral spring system. The stainless steel reel is bare, with a high polish finish and is ideal for highly corrosive environments.

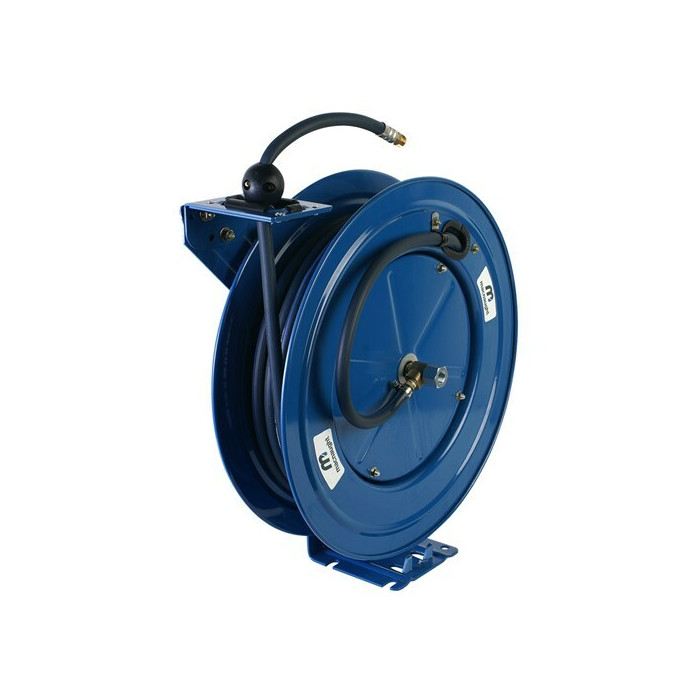

MacNaught MAS1020-01 Air/Water Reel Single Pedestal - 9mm x 20m
Features:
- Double supported steel drum shaft
- 4 bolt heavy duty steel mounting plate
- Multi position ratchet for positive latching
- Adjustable guide arm - can be wall, floor, ceiling, pit or vehicle mounted
- Multi directional nylon roller guides reduce hose drag and wear
- Lubricated spring encapsulated in cassette for safety
- Full flow swivel for maximum product delivery
- External swivel for easy servicing of swivel seals
- 10 year parts availability
Specification:
- Description: Air/Water
- Hose ID: 10mm (3/8)
- Hose length: 20m
- Working Pressure: 2070 kPa (300 psi)
- Hose Rewind Max OP Temp Spring: 80°C
- Reel Inlet: 3/8" BSP
- Hose Outlet: 3/8" BSP
Warranty:
- 5 year warranty
| Model Number | MAS1020-01 |
|---|---|
| gtin | 9317147730266 |
| Brand | Macnaught |
