Chainsaw Sharpening Guide Plate with 4.8mm (3/16") Diamond File Bit
$24.90
SKU
D-75633
Barcode
0088381596879
The plastic sharpening aid ensures that the saw chains are optimally ground in conjunction with round files which have a 1/4" hexagon socket. The sharpening aid is equipped with 2 magnets, which can be attached to the saw bar in no time at all. The required angle is specified via Lines on the aid are displayed and show the sharpening angles of 25° and 30°. The required round file diameter can be determined using the perforations on the sharpening aid. Suitable for all common saw chain types.

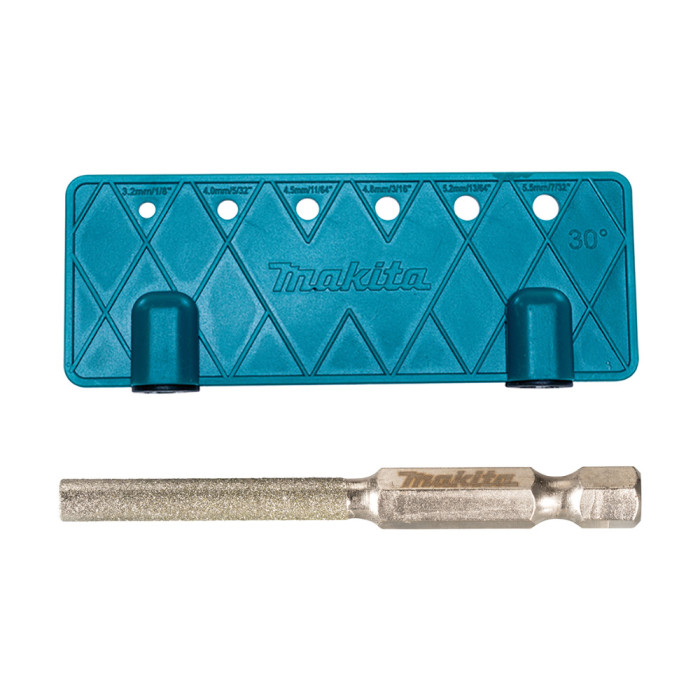

Makita D-75633 Chainsaw Sharpening Guide Plate with 4.8mm (3/16") Diamond File Bit
Sharpens your chainsaw so it helps cut faster, more efficient, and less likely to kick back. A well-sharpened chain will prolong the life of the engine, sprocket, and guide bar by reducing wear.
Features:
- Displays the sharpening angles of 25° and 30°. Accurate sharpening is quickly achieved using these lines
- Can be easily attached to a guide bar thanks to a handy magnet
- Holes for checking the round files outer diameter
- 1/4" Hex shank file bit that can quickly sharpen a saw chain when used with an impact driver or drill driver
- The time to sharpen a saw chain is significantly reduced to approximately 1/3 of the time
Specifications:
- File Bit Size - 4.8mm (3/16")
- File Bit Shank - 1/4"
- Guide Angles - 25° and 30°
- Drill Sizing Guides - 3.2mm (1/8"), 4.0mm (5/32"), 4.5mm (11/64"), 4.8mm (3/16"), 5.2mm (13/64"), 5.5mm (7/32")
- Mounting - Magnetic
| Model Number | D-75633 |
|---|---|
| gtin | 0088381596879 |
| Brand | Makita |
