Battery Charger Multi-Voltage 6V / 12V / 24V Automatic

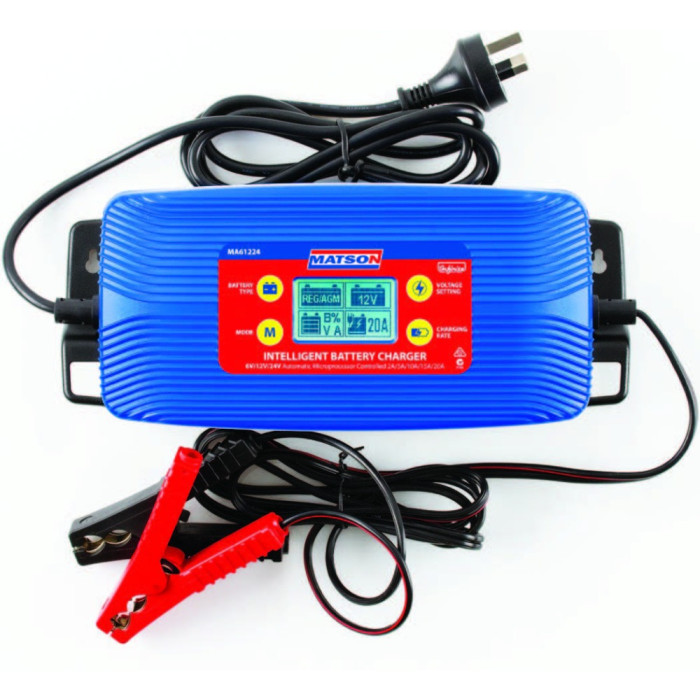

Matson MA61224 Battery Charger Multi-Voltage 6V / 12V / 24V Automatic

Features:

• Prevents the battery from overcharging and consequent damage
• Can be connected to the battery indefinitely
• Are programmable for different battery types including REG/AGM, GEL , CALCIUM AND LifePO4
• Has variable Voltage outputs
• Has a unique inbuilt diagnosis program. On connection to the battery, the charger automatically diagnoses the battery condition and changes its charge rate and charge stages accordingly. This optimizes charging conditions and extends battery life
• Has a LED display for: voltage, current, battery capacity & alternator %
• Has electronic touch-button controls
• Has a desulphation stage (Automatic)
• Uses high frequency charging for efficiency
• Incorporates polarity protection
• Prevents output leads from sparking due to reverse connection or short circuit
• Has over temperature protection - internally fan cooled with a set cut off point for additional safety
• Has over current protection - charger automatically reduces current for optimum battery condition

Battery Charging Mode:

Battery Type

• Select battery type by pressing battery type button

Battery Voltage

• Select voltage by pressing Voltage setting button

Charge Rate

• Select Amperage by pressing Charging rate button. Selection cycles through 2A / 10A / 20A. NOTE: If 24V is selected - the selections are 2A / 5A / 10A
• 2A - Slow charge - recommended for optimal battery condition. e.g. A 100Ah charges in approx 20 hours
• 10A - Intermediate charge - e.g. A 100Ah charges in approx 10 hours
• 20A - Boost charge - e.g. A 100Ah charges in approx 5 hours
• These times are a guide only - charge rates will vary depending on a number of conditions

Display Indicator

• Battery % - % of charge in the battery
• Voltage - Voltage of the battery being charged
• Current - Current (amperage) going into the battery being charged

Specifications:

• Charging Stages - 7
• Input - 240vac, 50Hz
• Output Voltage-  6/12/24 Volt DC Selectable
• Output Current - 6/12 Volt, 2/10/20 Amp. Selectable 24 Volt, 2/5/10 Amp. Selectable
• Power Supply Mode - 12v mode- 13.1V- 13.3V at 10Amps 24 mode- 26.2V – 26.4V at 5Amps
• Min. Start Voltage - 2 Volt
• Battery Size - 10 - 240 Ah Charge
• Battery Type - REG/AGM, GEL, CALCIUM & LITHIUM
• Weight - 1.9kg
• Dimensions - 300 x 100 x 75mm (LxWxH)
