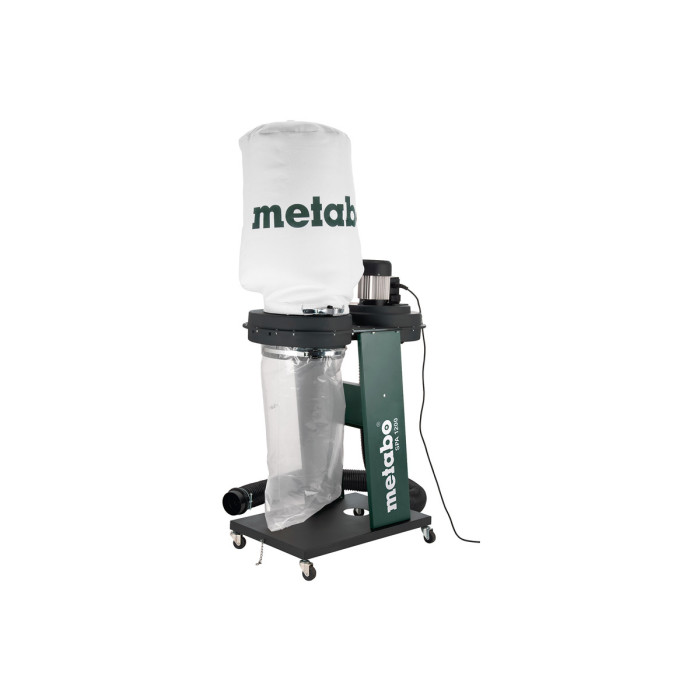

Chip Extractor 370w 60L Max

Features:

• Raw air extraction device for (semi) stationary wood processing machines (observe country-specific regulations!)
• Significantly reduces dust content
• Filter material of dust class L
• Integrated grounding as protection from electrostatic charge
• Quick change of the application location by means of wheeled unit and simple connection
• Stable stand with supported chip collection bag
• Comprehensive range of accessories: automatic switch-on devices, filter cartridges, hoses and adapters

Specifications:

• Dimensions: 830 x 450 x 1600 mm / 2.8 x 1.5 x 5.3 ft
• Maximum vacuum: 1600 Pa / 0.2 psi
• Maximum volume flow: 900 m³/h / 237755 gal/h
• Filter surface: 1 m² / 1550 sq.inch
• Hose connection Ø: 100 mm / 4"
• Chip bag capacity: 65 l / 17 gal
• Rated input power: 0.55 kW
• Weight: 22 kg / 48.5 lbs
• Cable length: 3 m

Noise Emission

• Sound pressure level: 85 dB(A)
• Sound power level (LwA): 98 dB(A)
• Uncertainty of measurement K: 3 dB(A)

Includes:

• Suction hose 100 x 2500 mm
• Filter bag made of needle felt
• Chip Collection Bag
