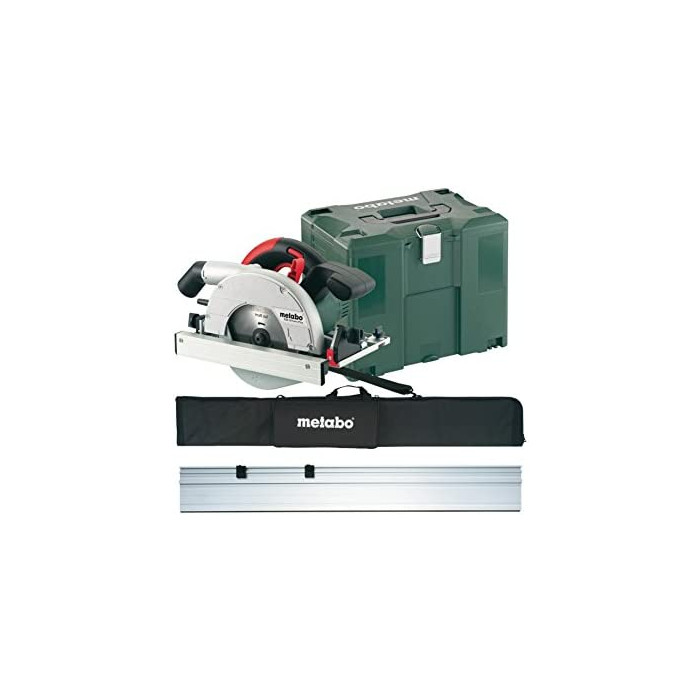

1200W 160mm (5-1/2") Circular Saw KSE 55 Vario Plus Rail 1500mm

Metabo AU60120459 1200W 160mm (5-1/2") Circular Saw KSE 55 Vario Plus Rail 1500mm

Features:

• Combined plunge cut circular saw – two high-quality functions in one machine
• Metabo S-automatic torque limiting clutch: mechanical decoupling of the drive for safe working should the saw blade stop unexpectedly.
• Convenient saw blade change due to simultaneous pendulum saw guard and saw blade stop
• Particularly light due to magnesium die-cast saw housing and guide plate
• Grip area with non-slip soft-grip surface
• Sawing close to wall possible
• Precise, double-track aluminium parallel guide makes cutting to size easier
• Clearly visible cutting indicator for precise sawing after initial cut
• 0° position re-adjustable for highest cutting precision
• Vario-Tacho-Constamatic (VTC)-Full Wave Electronics for work with materials requiring customised speeds, which remain constant under load
• Overload protection: protects the motor from overheating
• Extraction possibility by means of connecting an all-purpose vacuum cleaner
• Controllable chip ejection by means of rotating extraction nozzle
• Auto-stop carbon brushes to protect the motor
• Adjustment of machine without tools for using with the precision guide rail

Specifications:

• Characteristics:
  • Rated input power: 1200 W
  • Output power: 700 W
  • Maximum cutting depth at 90°: 55 mm / (2 5/32 ")
  • Maximum cutting depth at 45°: 40 mm / (1 9/16 ")
  • Saw blade Ø x bore: 160 x 20 mm / (6 1/4 “x 0.787 ")
  • Swivel range from / to:‌ 0 / + 45 °
  • No-load speed: 2000 - 5200 rpm
  • Revolutions at rated load: 5200 rpm
  • Max. cutting speed: 44 m/s / 144 ft/s
  • Torque: 5 Nm / 44 in-lbs
  • Weight (without power cable): 3.7 kg / 8.2 lbs
  • Cable length: 4 m / 13 ft
• Vibration:
  • Sawing chipboards: 2.5 m/s²
  • Uncertainty of measurement K: 1.5 m/s²
• Noise emission
  • Sound pressure level: 94 dB(A)
  • Sound power level (LwA): 105 dB(A)
  • Uncertainty of measurement K: 3 dB(A)

Includes:

• Guide Rail Overall length: 1500 mm
• Carbide circular saw blade (42 teeth)
• Hexagonal wrench
• Parallel guide / rip fence
• Extraction connector
