12V 25m High-Flex Inspection Camera Reel

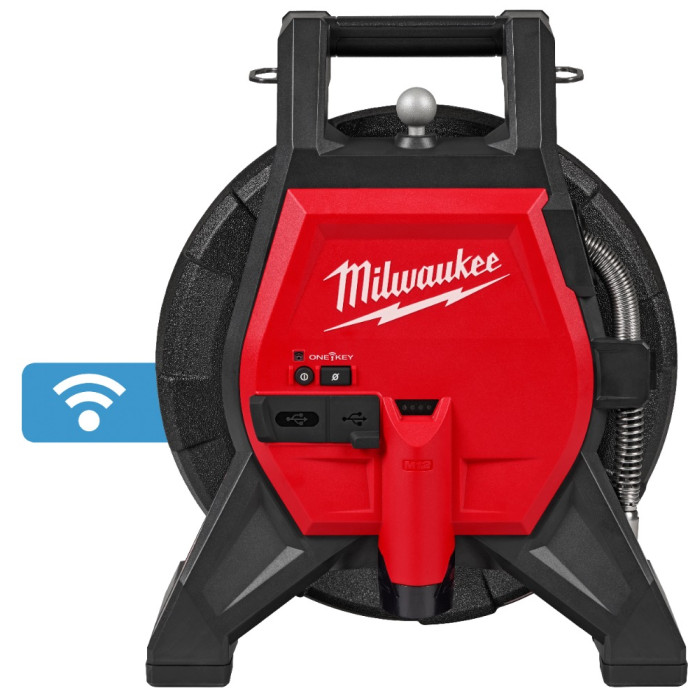

Milwaukee M12HFICR250 12V 25m High-Flex Inspection Camera Reel

The M12 25m High Flex Inspection Camera can inspect a wide array of small-diameter applications that conventional cameras can’t inspect. Our M12 Drain Line Inspection Cameras feature a compact design for the tightest jobsite environments and a carry handle for maximum portability on and off the job. This drain line camera is also equipped with ONE-KEYTM Technology, providing you with the ability to track the tool's location, manage it in inventory, and lock the tool out to help protect your investment.

Includes:

• 1 x M12 25m High-Flex Inspection Camera Reel (Tool Only)
• 1 x Carrying Strap
• 1 x Monitor Mount
• 1 x Barrel Skids

Features:

• Delivers clearer images, easier inspections​
• Inspects 1” – 3” drain lines up to 20m​
• Ultra Flex Push Cable to navigate the tightest bends​
• Equipped with Sonde for precise locating​
• ONE-KEYTM enabled for tracking and Inventory management
• 100GB Internal storage for video capture, exportable via USB
• Connect wirelessly with Milwaukee Inspection Monitors and the Milwaukee Pipeline Inspection App on IOS and Android devices

Specifications:

• Platform: M12™
• Voltage: 12V
• Line Type: Small pipes, Drain lines, P-Traps and S-Bends
• Line Capacity: 1-1/2” – 4”
• Push Cable Stiffness: Ultra Flex
• Push Cable Length: 25m
• Push Cable Diameter: 8mm
• Camera Resolution: 1080p
• Camera Size: 20 mm Self Levelling Camera Head
• Length: 173 mm
• Weight: 4.06kg
• Sonde Frequency: 512 Hz, 640 Hz
• ONE-KEY™: Yes
• Internal Storage: Yes, 100GB
• Ports: 2 x USB-A and 1 x USB-C Ports
• Dimensions (L x W x H): 476mm x 401mm x 313mm
• Weight: 4.86kg

Warranty:

• 5 Year Warranty Covered by Milwaukee
